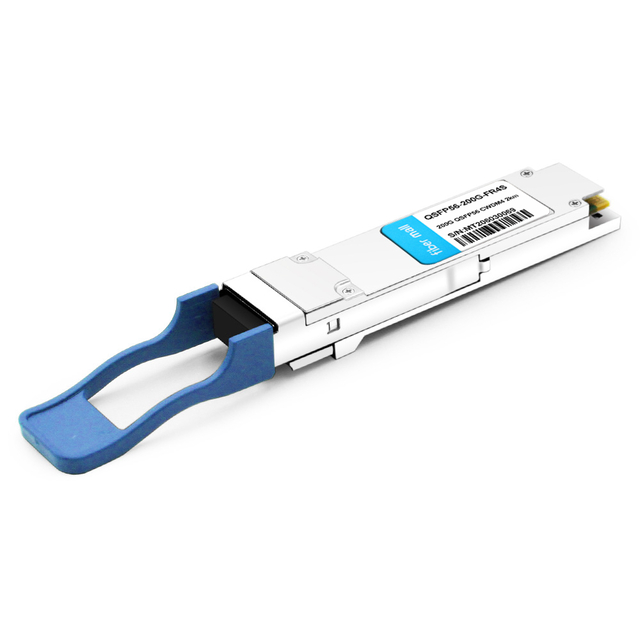

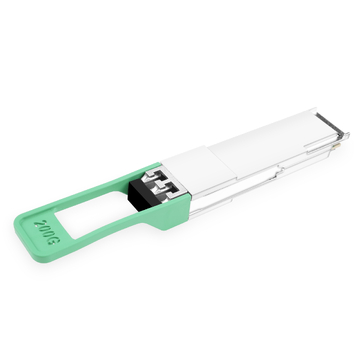

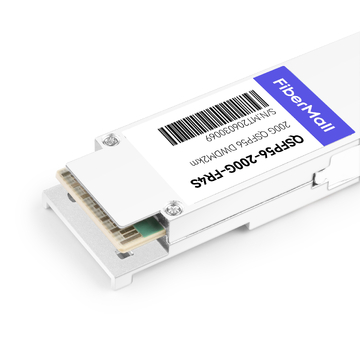

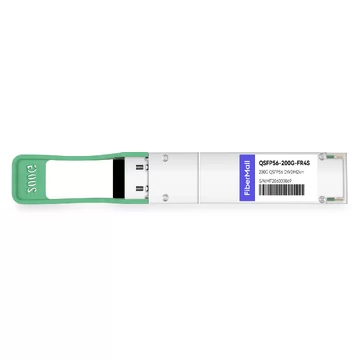

Mellanox MMS1W50-HM Compatible 200G InfiniBand HDR QSFP56 FR4 PAM4 CWDM4 2km LC SMF FEC Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:18092
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
Mellanox(HDR)
Transceiver Type
MMA1T00-HS
MMS1W50-HM
FM PN:
QSFP56-200G-FR4S
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Mellanox MMS1W50-HM Compatible 200G InfiniBand HDR QSFP56 FR4 PAM4 CWDM4 lanes MUX/DEMUX Design 2km Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm LC SMF 2km with FEC DDM)

200G InfiniBand HDR QSFP56 FR4 Transceiver Module is designed for 200GBASE Ethernet link up to 2km over single-mode fiber (SMF) using a wavelength of 1271nm to 1331nm with duplex LC connectors. The module supports four electrical interface channels and operates in 50G PAM4 coding mode, resulting in 200G (4x50G) data rates. It is compliant with IEEE 802.3cd, IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8024 and SFF-8679 standards. The built-in digital diagnostic monitoring (DDM) allows access to real-time operating parameters. It is suitable for 200G Ethernet, InfiniBand HDR, data centers, and cloud networks.


Product Details

Mellanox(HDR) Compatible MMS1W50-HMVendor Name FiberMall
Form Factor QSFP56Max Data Rate 212.5Gbps
Wavelength 1271nm, 1291nm, 1311nm, 1331nmMax Distance 2km
Modulation Format PAM4Host Required FEC

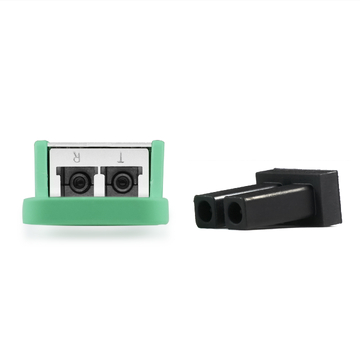

Connector Duplex LCVoltage Supply 3.3V
Cable Type SMFDDM Support Yes
Transmitter Type EML CWDM4Receiver Type PIN
TX Power -4.2~+4.7dBmReceiver Sensitivity < -8.2dBm
Operation Temperature 15 to 65°C (59 to 149 °F)Maximum Power < 6.5W
Protocols QSFP56 MSA, IEEE 802.3bs
200GBASE-FR4

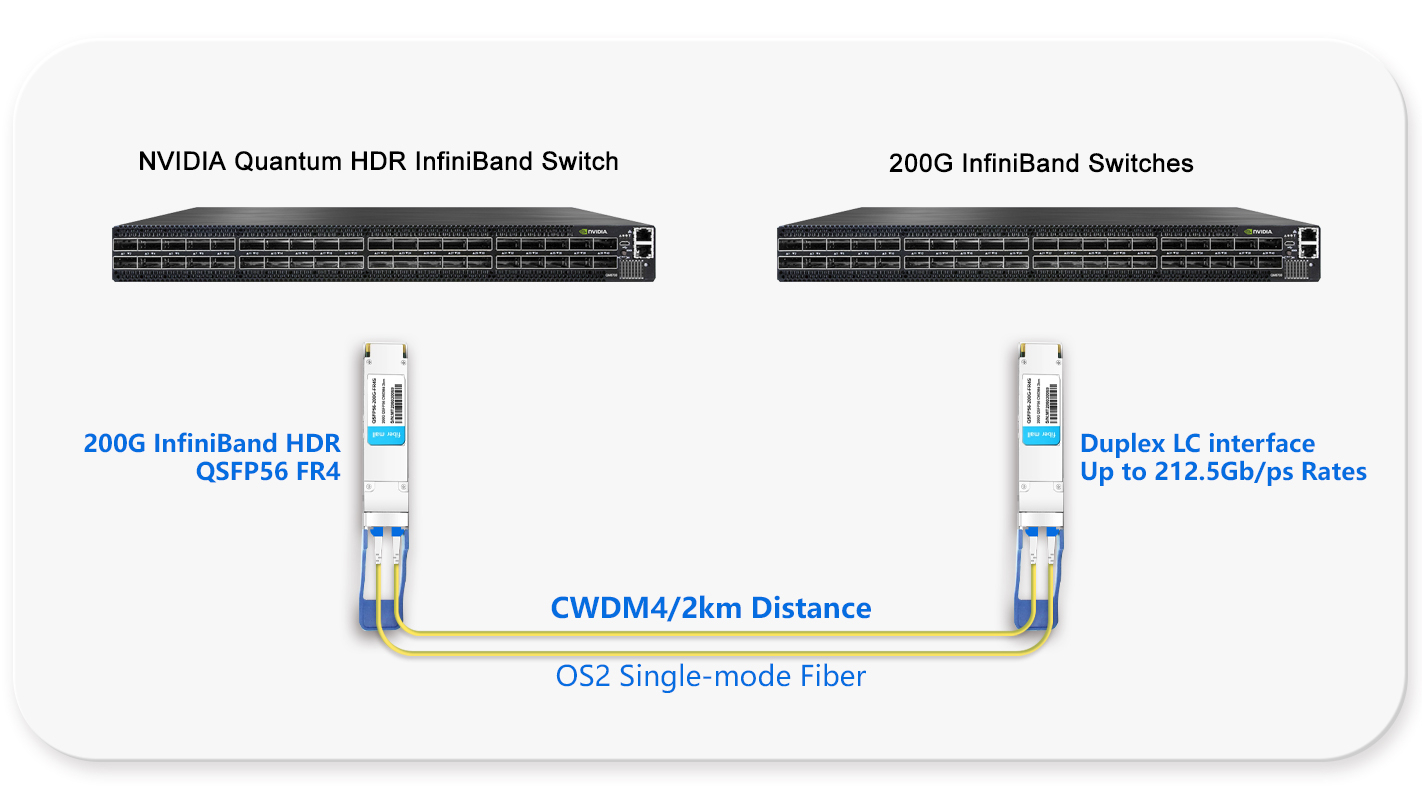

Application 200G InfiniBand HDR,200G Ethernet Data Center Interconnect


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

our advantages

Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

Keep In Stock

Fast Delivery
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

Professional Service

Technical Support
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
Coding(EEPROM Programming)
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
Testing system

Partial test demonstartion

Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
Cisco N9k-C92160YC-X-C
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
HP ProCurve 5406zl J8697A
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
ARISTA 7-50QX-32
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
Juniper EX4300
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
HW S5700-28X-L1-AC
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
Brocade VDX 6720
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
DELL S4048 ON
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
DATACOM DM4100
Mellanox MMS1W50-HM Compatible 200G FR4 Optical Module | FiberMall
H3C LS-5500-28C-S

Product Features

v Maximum power consumption 6.5W

v IEEE802.3bs 200GBASE-FR4 compliant

v 4 CWDM lanes MUX/DEMUX design

v Compliant with QSFP56 MSA CMIS V4.0

v Supports 212.5Gb/s aggregate bit rate

v High-speed Electrical Compliant with IEEE802.3bs 200GBASE-FR4 and IEEE 802.3cd

v Up to 2km transmission on single mode fiber (SMF) with FEC

v 4x50G PAM4 Retimed 200GAUI-4 Electrical Interface
