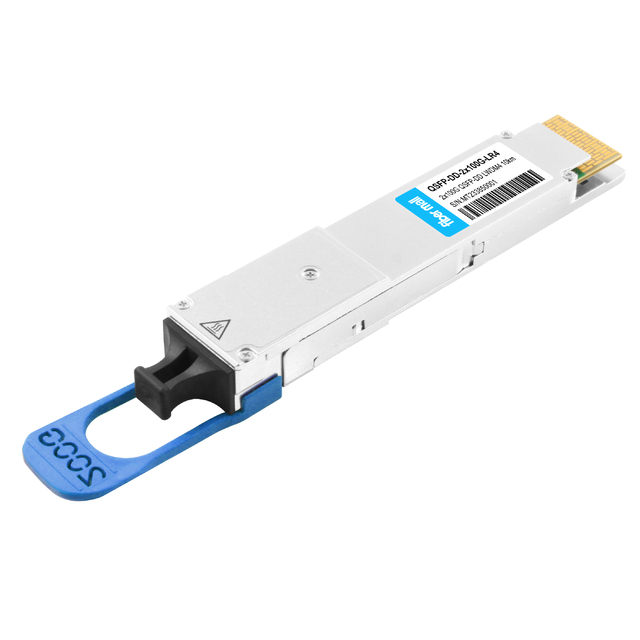

Juniper QDD-2X100G-LR4 Compatible 2x100GBASE-LR4 QSFP-DD LWDM4 10km Duplex CS SMF Optical Transceiver Module

Name: Juniper QDD-2X100G-LR4 Compatible 2x100GBASE-LR4 QSFP-DD LWDM4 10km Duplex CS SMF Optical Transceiver Module
Brand: fibermall
SKU: 19013
Price: 1550.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19013

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Juniper

Transceiver Type: QDD-2X100G-LR4

FM PN:

QSFP-DD-2x100G-LR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Juniper QDD-2X100G-LR4 Compatible 2x100GBASE-LR4 Optical Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm CS SMF 10km DDM)

QSFP-DD 2x100GBASE-LR4 optical transceiver modules are suitable for data centers and HPC (High-Performance Computing) links up to 10km over single-mode fiber. It also features outstanding BER and high sensitivity because of its reliable design and excellent coupling efficiency.

Product Details

Juniper Compatible	QDD-2X100G-LR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	212.5Gbps
Wavelength	1295.56nm, 1300.05nm 1304.58nm, 1309.14nm	Max Distance	10km
Connector	Duplex CS	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	DML LWDM4	Receiver Type	PIN
TX Power	Each Lane	Receiver Sensitivity	< -8.6 dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 8W
Protocols	SFF-8665 CMIS 3.0 QSFP-DD MSA	Application	100G Ethernet

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

200G QSFP-DD

Product Features

v Supports 206Gbps

v Single 3.3V Power Supply

v Power dissipation < 8.0W

v QSFP-DD MSA Compliant

v 8*25Gbps DML transmitter

v I2C interface with integrated Digital Diagnostic Monitoring

v RoHS compliant

v 2x100G QSFP-DD LWDM4 applications
