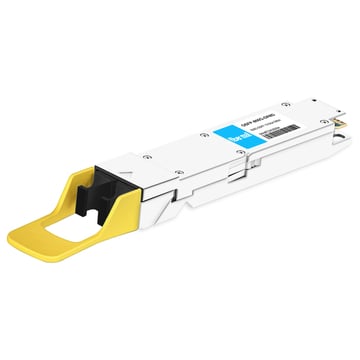

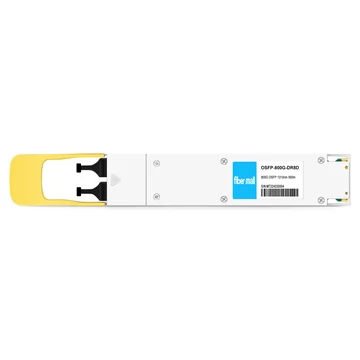

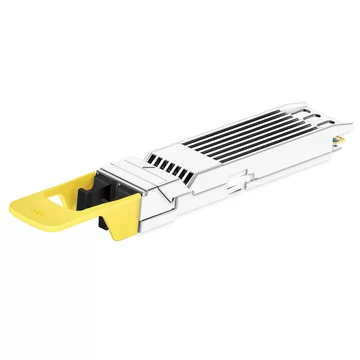

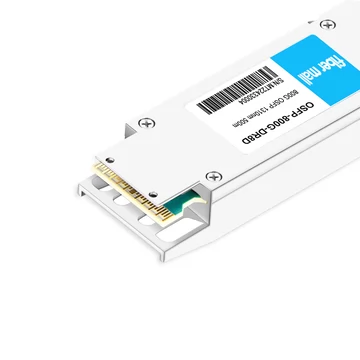

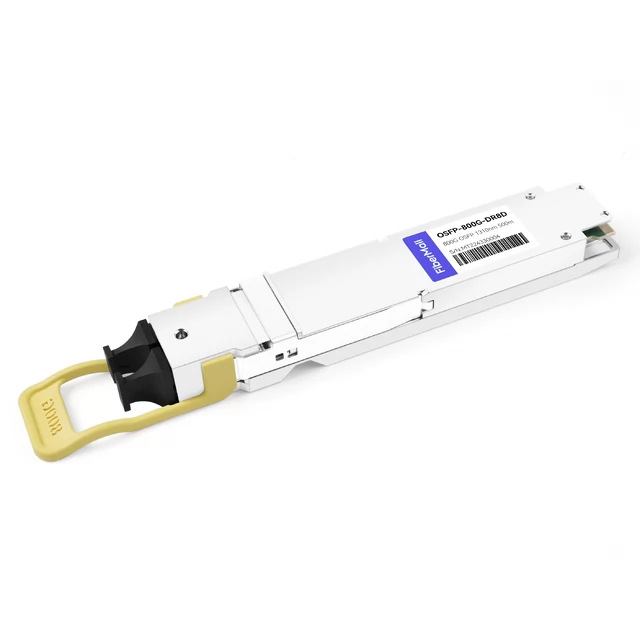

NVIDIA MMS4X00-NM Compatible 800G-DR8 OSFP Transceiver Modules are designed for 800 Gigabit Ethernet links over 500m of single-mode fiber. The module has 8 independent electrical input/output channels, each operating at up to 106.25Gbps. The transceiver consists of two transmitter/receiver units, each operating on a set of wavelengths on the 1310nm ITU G.694.2 CWDM grid. The module's transmitter path consists of a bidirectional PAM4 re-timer ASIC integrating a silicon photonic laser and two 4-channel modulator drivers. On the receiver path, 8 photodiodes and two 4-channel TIA arrays, and a PAM4 re-timer are used.
Product Details
NVIDIA Compatible
MMS4X00-NM
Vendor Name
FiberMall
Form Factor
OSFP
Max Data Rate
850Gbps (8x 106.25Gbps)
Wavelength
1310nm
Max Distance
500m
Modulation Format
PAM4
Host Required
FEC
Connector

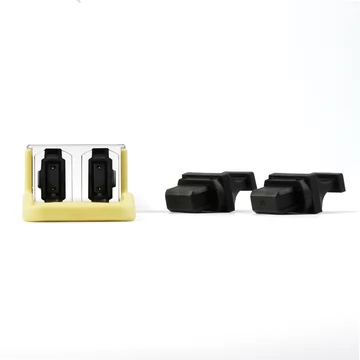

Dual MTP/MPO-12
Voltage Supply
3.3V
Cable Type
SMF
DDM Support
Yes
Transmitter Type
EML
Receiver Type
SiFotonics PD array
TX Power
-5.9~+4.0dBm
Receiver Sensitivity
< -3.9dBm
Operation Temperature
0 to 70°C (32 to 158°F)
Maximum Power
< 16.5W
Protocols
CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu
Application
800G Ethernet, Data Center Interconnect, Infiniband Interconnects
Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Our Advantages
Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
High and low temperature cycle,aging test to ensure good temperature characteristics
Mechanical Impact
Mechanicalvibration testing to ensure the stability of products
MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Coding (EEPROM Programming)
Testing system
Switch Introduction
NVIDIA Quantum-2 Switches
Network Card Introduction
e
Network Card List
Notes:
1. 100G can be supported as either 4x25G NRZ or 2x50G.
2. 200G can be supported as either 4x50G or 2x100G.
3. 400G is supported as 4x100G.
4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

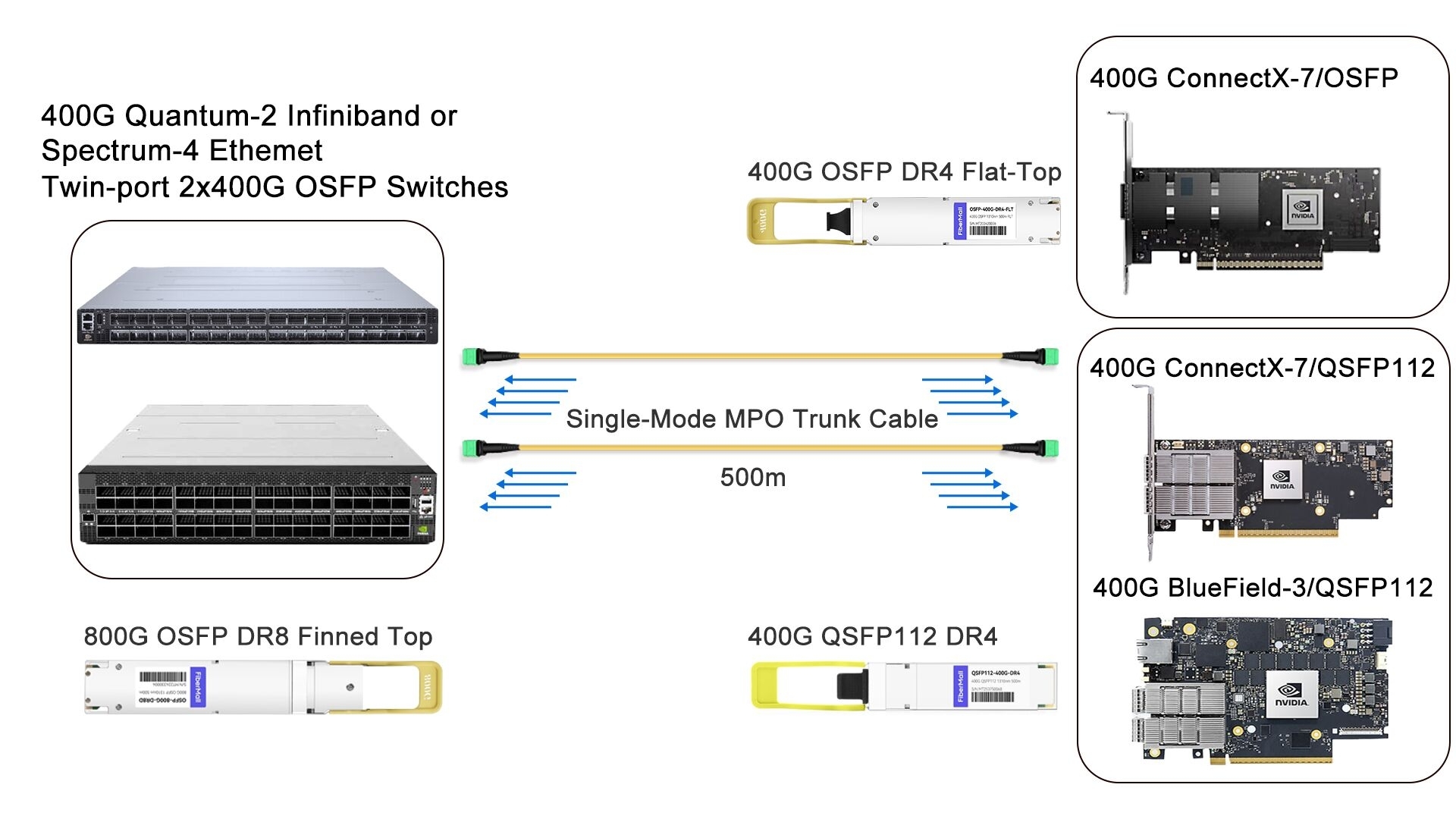

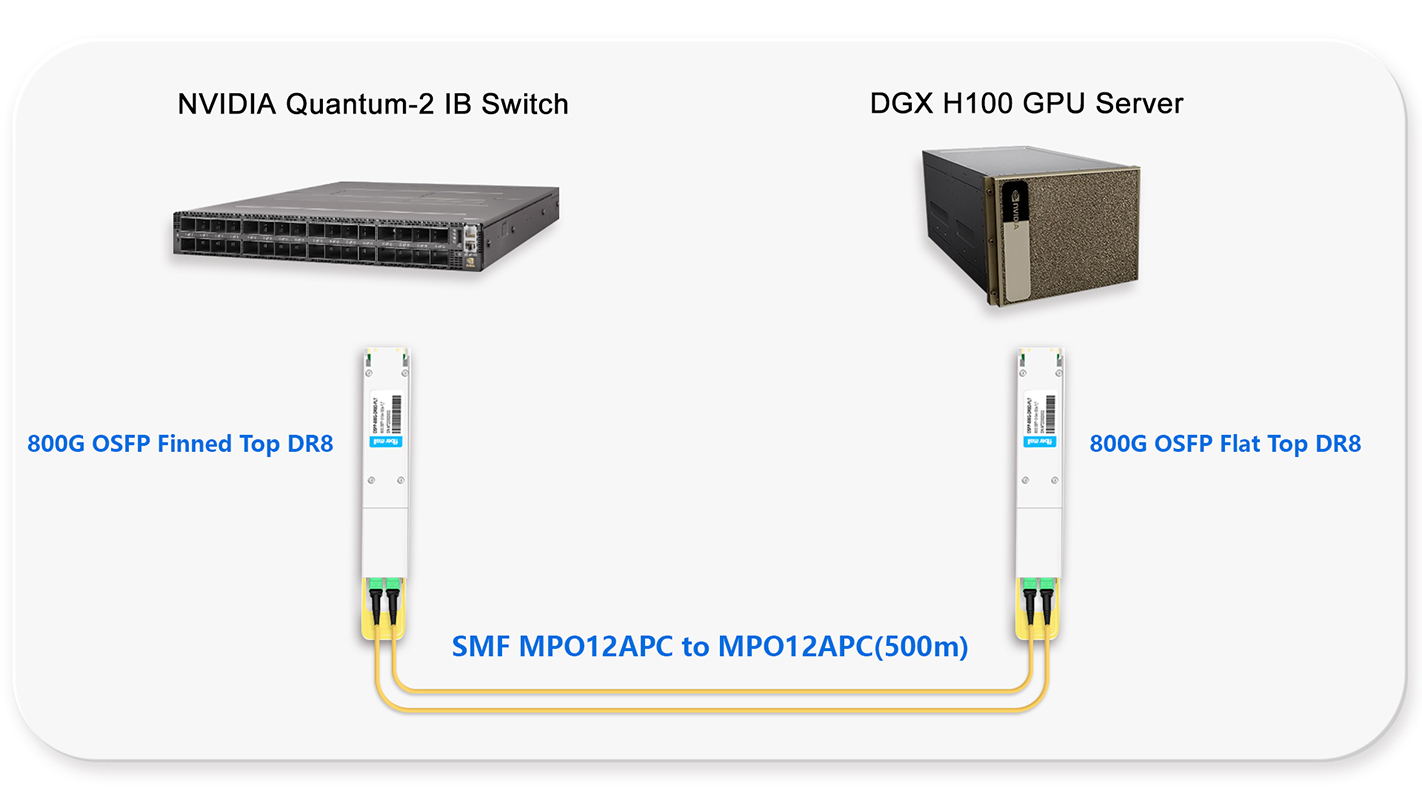

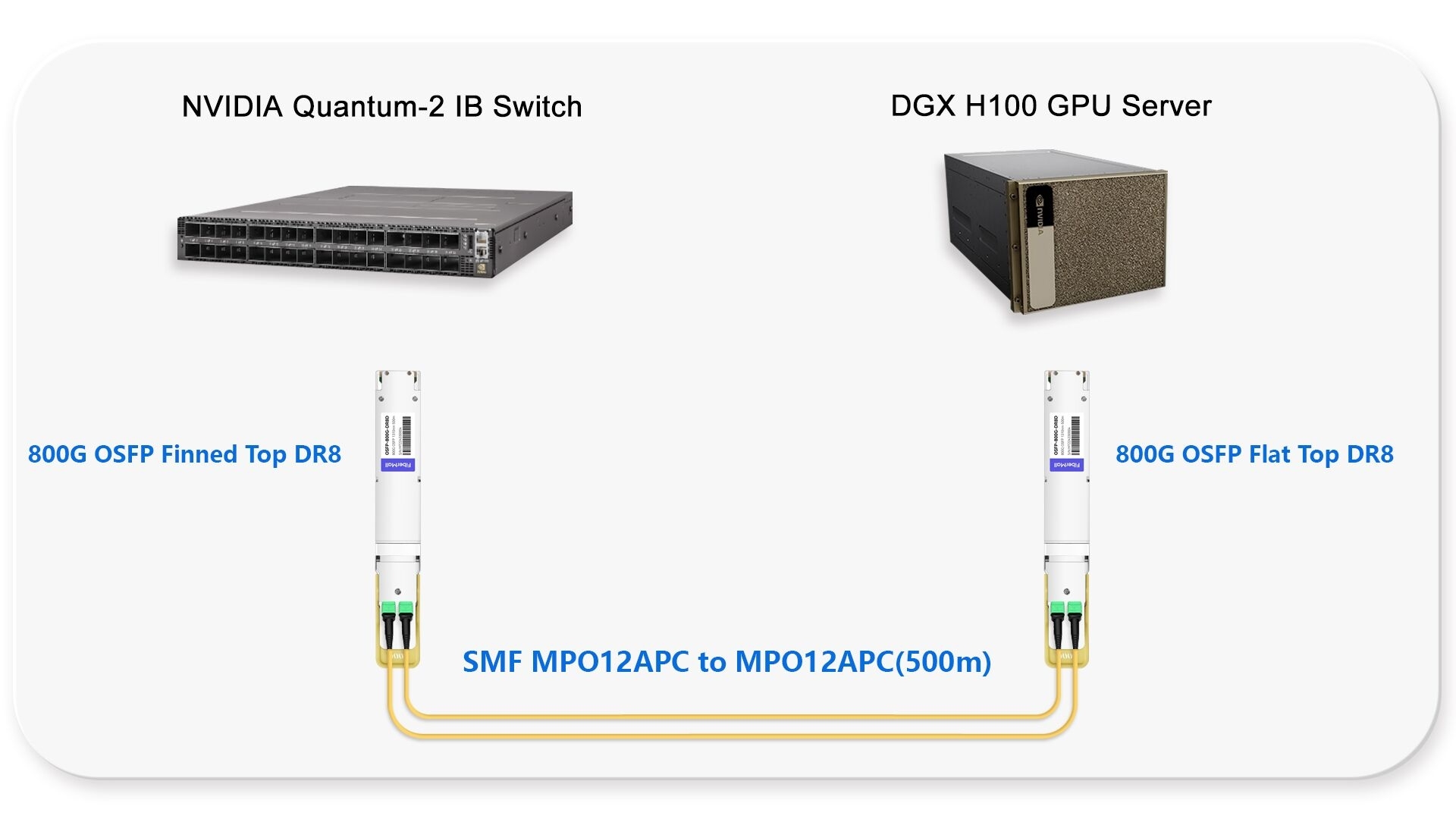

Switch to Switch (NDR) - Optics
