XGSPON ONU SFP+ N1/N2 Optical Industrial Transceivers | FiberMall

Add to wish

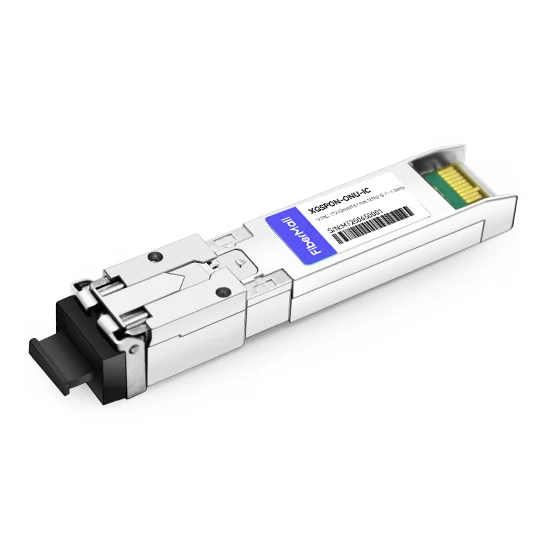

XGSPON-ONU-IC XGSPON ONU SFP+ TX-9.95G/RX-9.95G TX-1270nm/RX-1577nm N1/N2 SC DDM Industrial Optical Transceivers

Name: XGSPON-ONU-IC XGSPON ONU SFP+ TX-9.95G/RX-9.95G TX-1270nm/RX-1577nm N1/N2 SC DDM Industrial Optical Transceivers
Brand: fibermall
SKU: 21579
Price: 97.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:21579

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: XGSPON-ONU-C; XGSPON-ONU-IC; XGS/GPON-OLT-CB+; XGSPON-OLT-SN1; XGS/GPON-OLT-CC+; XGS/GPON-OLT-IB+; XGSPON-OLT-SN2; XGS/GPON-OLT-SBC; XGS/GPON-OLT-IC+; XGS/GPON-OLT-SBI; XGS/GPON-OLT-SCC; XGSPON-OLT-SIN1; XGS/GPON-OLT-SCI; XGSPON-OLT-SIN2; XGS/GPON-OLT-SDC; XGS/GPON-OLT-SDI; XGSPON-OLT-XN1; XGSPON-OLT-XN2

FM PN:

XGSPON-ONU-IC

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Product Details

FiberMall P/N	XGSPON-ONU-IC	Vendor Name	FiberMall
Application	XGSPON ONU	ODN Class	N1/N2
Wavelength	TX 1270nm/RX 1577nm	Data Rate	TX 9.95G/RX 9.95G
TX Power	+4.0~+9.0dBm	Receiver Sensitivity	< -28.0dBm
Package	SFP+	Interface	SC
Cable Type	SMF	Max Distance	20km
Operation Temperature	-40 °C to 85 °C	Protocols	ITU-T G.9807, SFP+ MSA

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability

Rigorous Industrial Product Testing

Optical communication products belong to industrial products, which require high stability and reliability. FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

EMI Testing

Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing in system

PON Network Topology

Application Diagram of PON Network

XGPON XGSPON OLT&ONU

XGSPON ONU SFP

Product Features

v Single fiber bi-directional data links with asymmetric TX 9.953Gbps upstream and RX 9.953Gbps downstream

v 1270nm DFB burst mode transmitter

v 1577nm APD continuous mode receiver

v SFP+ package with SC/UPC receptacle optical interface

v CML compatible data input/output interface

v Hot-pluggable capability

v Single +3.3V power supply operating

v Support 20km transmission distance with SMF

v Commercial: 0°C to 70°C

v Industrial: -40°C to 85°C

v RoHS Compliant Part

Applications

v 10-Gigabit-capable passive optical networks (XGS-PON) ONU (ODN N1 class)

Standards

v Complies with SFP+ MSA (SFF-8431)

v Complies with ITU-T G.987.2

v Complies with SFF-8472
