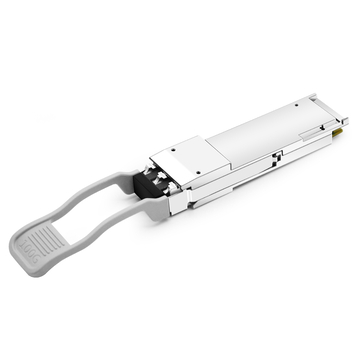

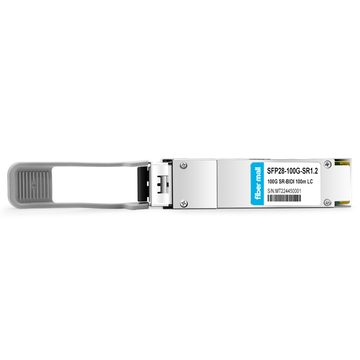

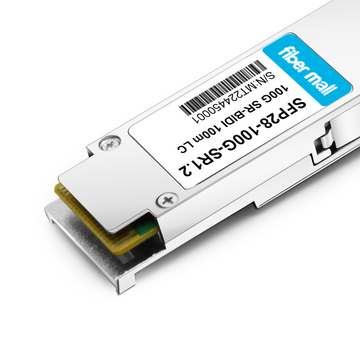

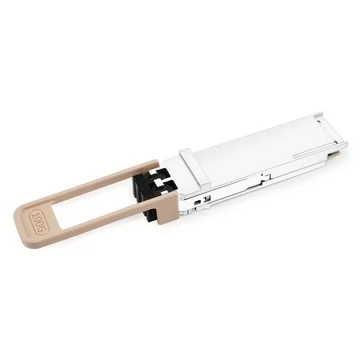

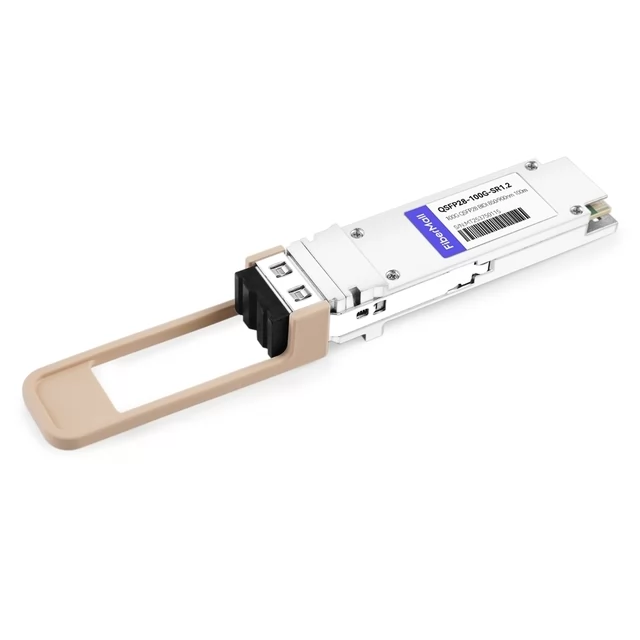

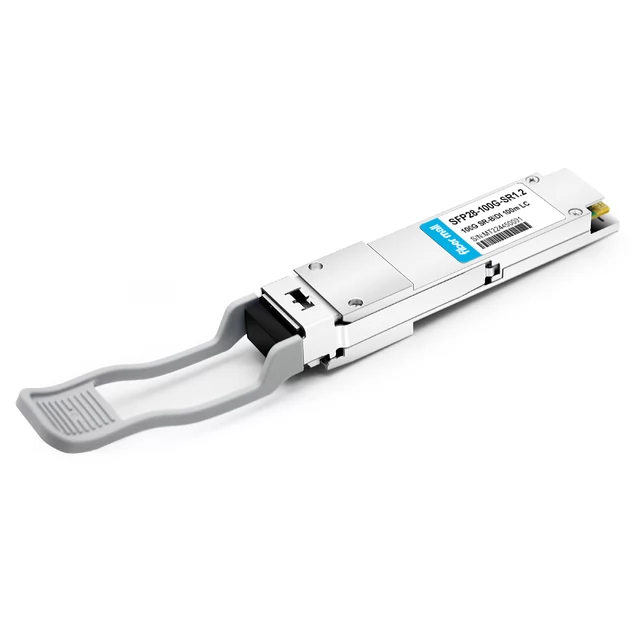

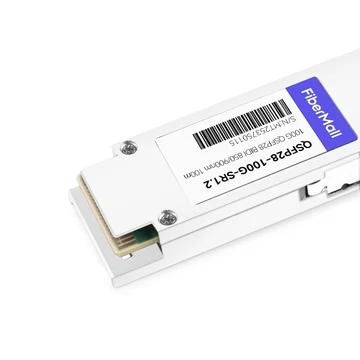

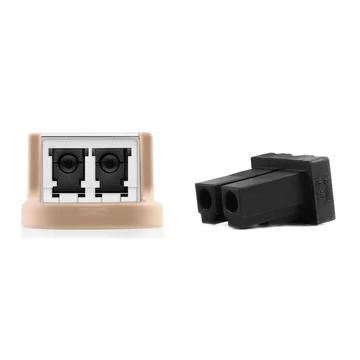

QSFP28-100G-SR1.2 Single Rate 100G QSFP28 BIDI 850nm & 900nm 100m LC MMF DDM Optical Transceiver

Name: QSFP28-100G-SR1.2 Single Rate 100G QSFP28 BIDI 850nm & 900nm 100m LC MMF DDM Optical Transceiver
Brand: fibermall
SKU: 18953
Price: 300.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18953

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall

FM PN:

QSFP28-100G-SR1.2

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

100G QSFP28 BIDISingle Rate 100G QSFP28 BIDI Optical Transceiver (850nm & 900nm MMF 100m LC DDM)

The QSFP 100G SR BIDI is a parallel QuadSmall Form-factor Pluggable (QSFP28) Bi-Direction optical module that supports 100 Gbps bit rates. The module integrates four host electrical data into two optical lanes over a 2-fiber duplex LC optical multi-mode fiber. It operates 50Gb PAM4 channels, for a total aggregate bandwidth of 100Gb. PAM4 technology enables a 50Gb data rate with signaling at 25Gbaud rates. The QSFP 100G SR1.2 BiDi is compliant with IEEE802.3bm 100GBASE-SR4.

Product Details

FiberMall P/N	QSFP28-100G-SR1.2	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	100Gbps
Wavelength	850nm & 900nm	Max Distance	100m

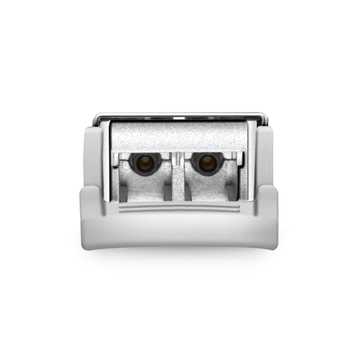

Connector	Duplex LC	Transmitter Type	850/900nm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-6.0~+4.0dBm	Receiver Sensitivity	< -8.0dBm
Chip Manufacturers	Marvel (Inphi)	Modulation Format	PAM4
Protocols	100G Ethernet, QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

100G QSFP28 BIDI

Product Features

v Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm

v Compliant to QSFP28 SFF-8636 Specification

v Aggregate bandwidth of > 100Gbps

v Dual-wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm

v QSFP28 MSA compliant

v Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

v Single +3.3V power supply operating

v With digital diagnostic functions

v Temperature range 0°C to 70°C

v RoHS Compliant Part

v Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

Applications

v 100 Gigabit Ethernet interconnects

v Datacom/Telecom switch & router connections

v Data aggregation and backplane applications

v Proprietary protocol and density applications
