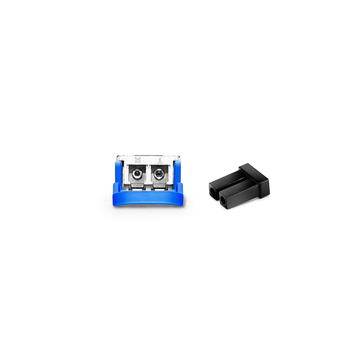

QSFP28-100G-4WDM-10 100G QSFP28 4WDM 10km LC SMF DDM Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

FM PN:
QSFP28-100G-4WDM-10
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100G QSFP28 4WDM Transceiver Module (1271nm,1291nm,1311nm,1331nm SMF 10km LC DDM)

The 100G QSFP28 CWDM4 is a transceiver module designed for 10 km optical communication applications. The design is compliant with 100GbASE-LR4 of the IEEE802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standardITU-T G.959.1-2012-02 standard. The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals and converts them to 4 lanes output electrical data.

Product Details

Fiber Mall P/N QSFP28-100G-4WDM-10Vendor Name Fiber Mall
Form Factor QSFP28Max Data Rate 111.81Gbps
Wavelength 1271nm,1291nm
1311nm,1331nm
Max Distance 10km
Connector Duplex LCTransmitter Type CWDM4 DML
Cable Type SMFReceiver Type PIN
TX Power -6~+2.5dBmReceiver Sensitivity < -13.0dBm
Protocols 100G Ethernet, MSA CompliantOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

our advantages

Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

Keep In Stock

Fast Delivery
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

Professional Service

Technical Support
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

Worry-Free Guarantee

Shopping Satisfactorily
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

Fiber Mall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
Coding(EEPROM Programming)
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
Testing system

Partial test demonstartion

Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
Cisco N9k-C92160YC-X-C
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
HP ProCurve 5406zl J8697A
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
ARISTA 7-50QX-32
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
Juniper EX4300
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
Huawei S5700-28X-L1-AC
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
Brocade VDX 6720
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
DELL S4048 ON
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
DATACOM DM4100
Fiber Mall QSFP28-100G-4WDM-10 QSFP 4WDM Optical | Fiber Mall
H3C LS-5500-28C-S

Product Features

v 4 lanes MUX/DEMUX design

v Integrated CWDM TOSA / ROSA for up to 10km reach over SMF

v Support 100GBASE-CWDM4 for line rate of 103.125Gbps and OTU4 for line rate of 111.81Gbps

v Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard

v Single +3.3V power supply operating

v RoHS Compliant Part

v Support FEC(Forward Error Correction)

v Local Area Networks (LAN), Wide Area Networks (WAN), Ethernet switches, and router applications
