100GBASE-SR BD 100G QSFP28 SR BiDi Optical Transceiver | FiberMall

QSFP28-100G-SRBD Dual Rate 40G/100G QSFP28 BIDI 850nm & 900nm 100m LC MMF DDM Optical Transceiver

Name: QSFP28-100G-SRBD Dual Rate 40G/100G QSFP28 BIDI 850nm & 900nm 100m LC MMF DDM Optical Transceiver
Brand: fibermall
SKU: 17952
Price: 449.00 USD
Availability: OutOfStock
Rating: 5 (12 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17952

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; AVAGO (Broadcom); Arista Networks; DELL; H3C; HPE (H3C); Huawei; Juniper

FM PN:

QSFP28-100G-SRBD

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

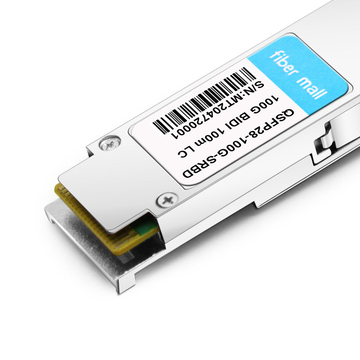

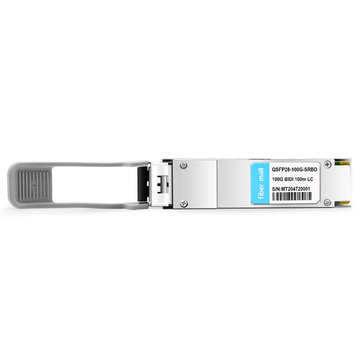

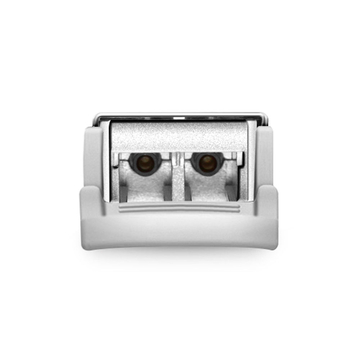

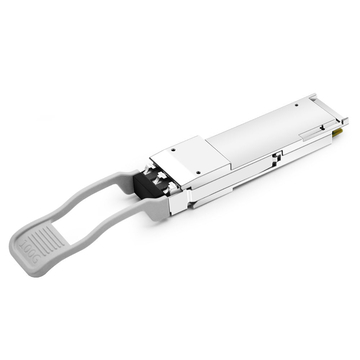

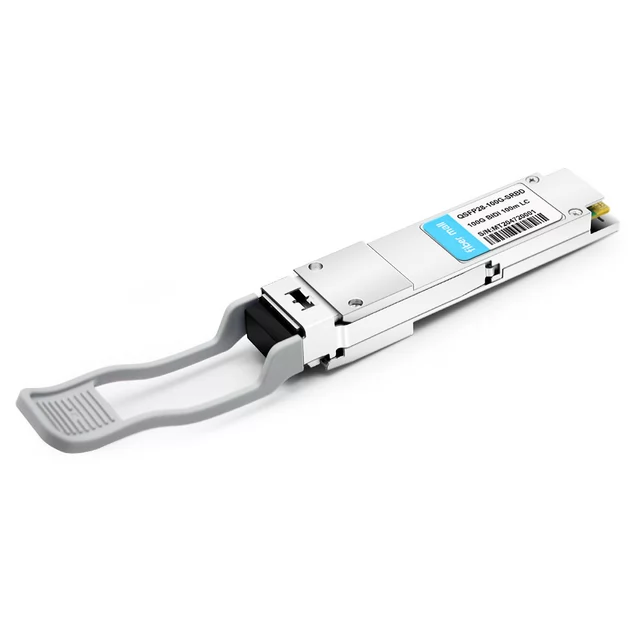

Dual Rate 40G/100G QSFP28 BIDI Optical Transceiver (850nm & 900nm MMF 100m LC DDM)

The 40G/100G QSFP28 BIDI supports dual rate 40Gb/s and 100Gb/s bit rates. It is a parallel QuadSmall Form-factor Pluggable (QSFP28) Bi-Direction optical module. The module integrates four host electrical data into two optical lanes (by Dual Wavelength VCSEL Bi-Directional Optical Interface, 850nm, and 900nm) to allow optical communication over a 2-fiber duplexLC optical multi-mode fiber.

Product Details

FiberMall P/N	QSFP28-100G-SRBD	Vendor Name	FiberMall
Form Factor	QSFP28	Max Data Rate	40Gbps/100Gbps
Wavelength	850nm & 900nm	Max Distance	100m
Connector	Duplex LC	Transmitter Type	850/900nm VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-6.0~+4.0dBm	Receiver Sensitivity	<-8.0dBm
Chip Manufacturers	Broadcom	Modulation Format	PAM4
Protocols	100G Ethernet, QSFP28 MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

	QSFP28-100G-SR4	QSFP28-100G-SR1.2	QSFP28-100G-SRBD
FiberMall P/N	QSFP28-100G-SR4	QSFP28-100G-SR1.2	QSFP28-100G-SRBD
Vendor Name	FiberMall	FiberMall	FiberMall
Form Factor	QSFP28	QSFP28	QSFP28
Max Data Rate	103.1Gbps	100Gbps	40Gbps/100Gbps
Wavelength	850nm	850nm & 900nm	850nm & 900nm
Max Distance	100m on OM4	100m	100m
Connector	MTP/MPO-12	Duplex LC	Duplex LC
Transmitter Type	850nm VCSEL	850/900nm VCSEL	850/900nm VCSEL
Cable Type	MMF	MMF	MMF
Receiver Type	PIN	PIN	PIN
TX Power	-8.4~+2.4dBm	-6.0~+4.0dBm	-6.0~+4.0dBm
Receiver Sensitivity	< -10.3dBm	< -8.0dBm	<-8.0dBm
Protocols	100G Ethernet, MSA Compliant	100G Ethernet, QSFP28 MSA Compliant	100G Ethernet, QSFP28 MSA Compliant
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)

Product Features

v Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm

v Compliant to QSFP28 SFF-8636 Specification

v Dual-wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm

v QSFP28 MSA compliant

v Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

v Single +3.3V power supply operating

v RoHS Compliant Part

v Supports 100 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation and backplane applications, and Proprietary protocol and density applications
