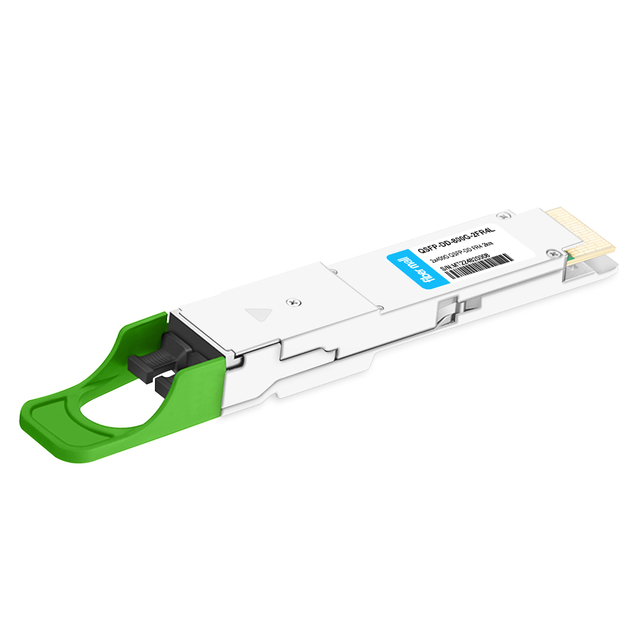

Cisco QDD-2X400G-FR4 QSFP-DD 2x400G FR4 Transceiver | FiberMall

Add to wish

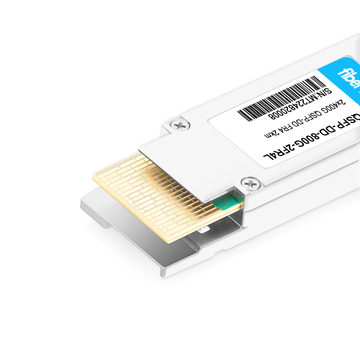

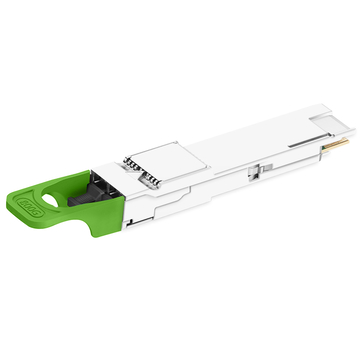

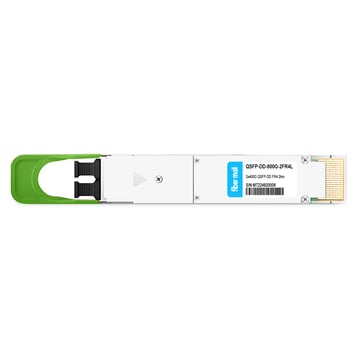

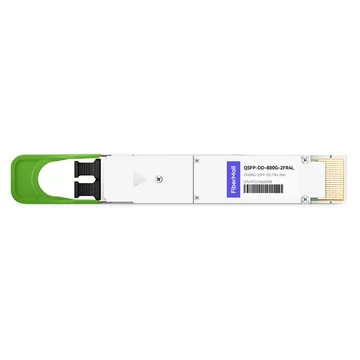

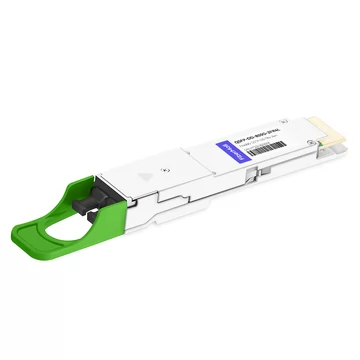

Cisco QDD-2X400G-FR4 Compatible QSFP-DD 2x400G FR4 PAM4 CWDM4 2km DOM Dual duplex LC SMF Optical Transceiver Module

Name: Cisco QDD-2X400G-FR4 Compatible QSFP-DD 2x400G FR4 PAM4 CWDM4 2km DOM Dual duplex LC SMF Optical Transceiver Module
Brand: fibermall
SKU: 19319
Price: 1800.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19319

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista; H3C

Transceiver Type: OSFP-800G-DR8; QDD-8X100G-FR; QDD-2X400G-FR4

FM PN:

QSFP-DD-800G-2FR4L

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Cisco QDD-2X400G-FR4 Compatible 800G QSFP-DD Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm Dual duplex LC SMF 2km with FEC DDM)

Cisco QDD-2X400G-FR4 Compatible QSFP-DD 2x400G FR4 transceiver module is designed for 800 Gigabit Ethernet links over 2 km of single-mode fiber. The module has eight independent electrical input/output channels, each operating at speeds up to 106.25 Gbps. The transceiver consists of two transmitter/receiver units, each operating on a set of four wavelengths on the ITU G.694.2 CWDM grid near 1300nm. The module's electrical interface is compliant with the IEEE 802.3ck defined 800GAUI-8 interface and is QSFP-DD MSA compliant.

Product Details

Cisco Compatible	QDD-2X400G-FR4	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	850Gbps(8x 106.25Gbps)
Wavelength	1271nm, 1291nm, 1311nm, 1331nm	Max Distance	2km
Modulation Format	PAM4	Host Required	FEC
Connector	Dual Duplex LC	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	CWDM EML	Receiver Type	PIN
TX Power	-3.2~+4.4dBm	Receiver Sensitivity	< -4.6dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 16W
Protocols	QSFP-DD MSA, IEEE 802.3bs	Application	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products are industrial products that require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials, and production technology to ensure the first-class quality of our products so that your project can be used, installed stably, and reliably

: Temperature Impact; High and low-temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: EMI Testing; Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF(Mean Time Between Failures)testing ensures high stability

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

ARISTA 7060SX2-48YC6

H3C S6850-56HF

Cisco N9K-C92160YC-X

HP JG510A

Juniper QFX5110-48S-AFO

Mellanox SN4700

Cisco-N9K-C93600CD-GX

NVIDIA QM9790

Ruijie RG-S6990-128QC2XS

800G QSFP-DD

Product Features

v Supports 850Gbps

v Single 3.3V Power Supply

v Up to 2km over SMF with KP4 FEC supported at the Host side

v Dual SMF CS connector

v 8x106.25Gbps (PAM4) electrical interface

v PIN and TIA array on the receiver side

v Power dissipation < 16W

v Case temperature range: 0°C to 70°C(commercial)

v Safety Certification: TUV/UL/FDA*1

v RoHS Compliant

v Application for 8x100G Ethernet, 2x400G Ethernet, 2x200G Ethernet
