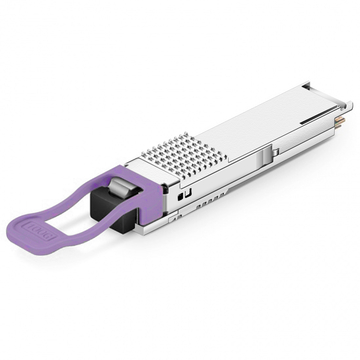

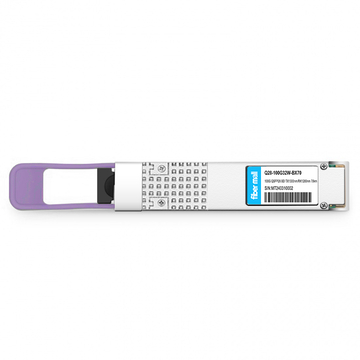

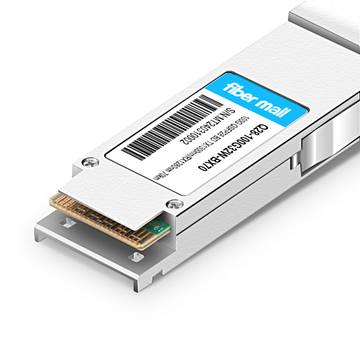

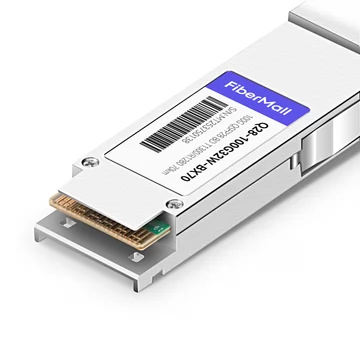

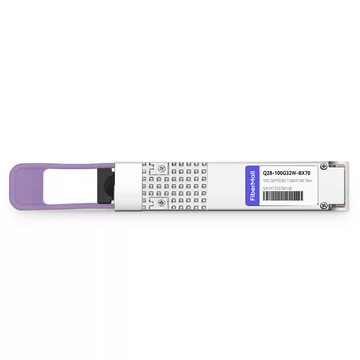

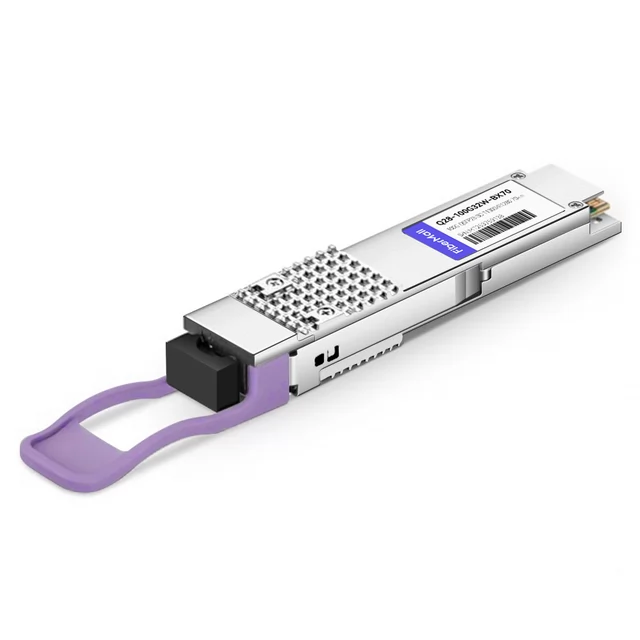

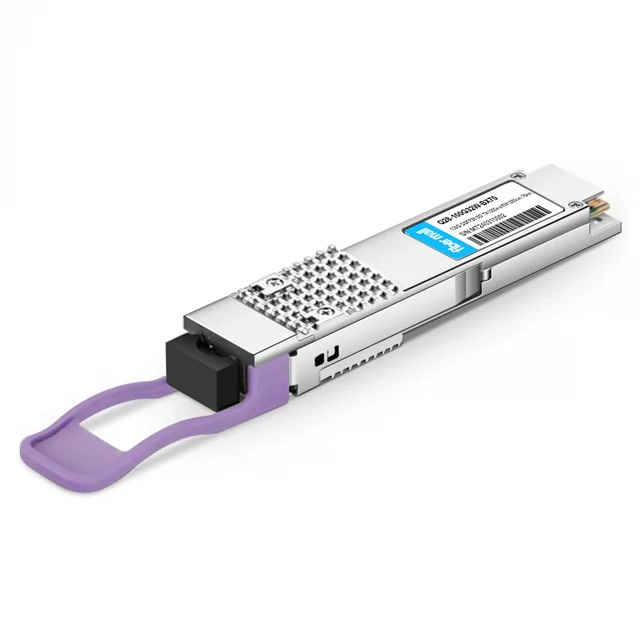

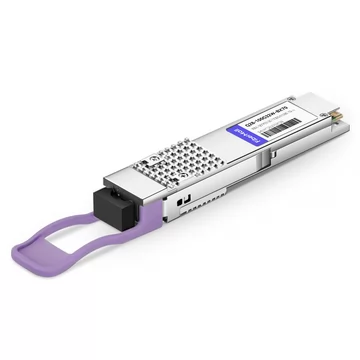

| FiberMall P/N | Q28-100G32W-BX70 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
| Wavelength | TX1300nm/RX1280nm | Max Distance | 70km |
| Connector | Simplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | SOA+PIN |
| TX Power | +1.0~+7.0dBm | Receiver Sensitivity | < -24dBm |
| Protocols | QSFP28 MSA | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
Hot pluggable QSFP28 MSA form factor
Supports 103.1Gb/s aggregate bit rate
Up to 70km reach for G.652 SMF [with RS(528,514) FEC]
Single +3.3V power supply
Temperature Range 0 to 70°C
Cooled 4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA Maximum power consumption 5.0W

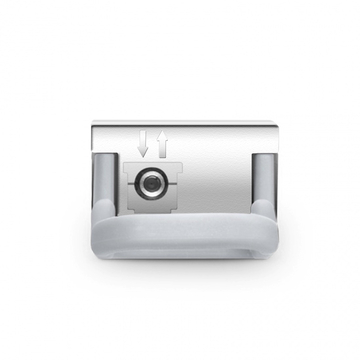

Single LC receptacle
Compatible with RoHS2.0
DDM function
Applications
Ethernet Links
100GBASE-ZR4 lite
