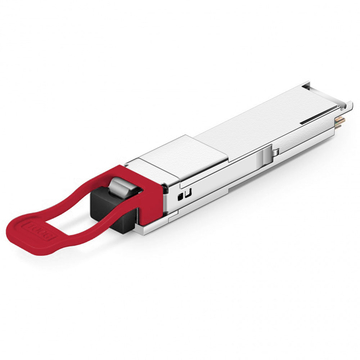

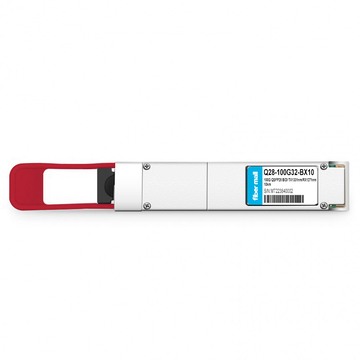

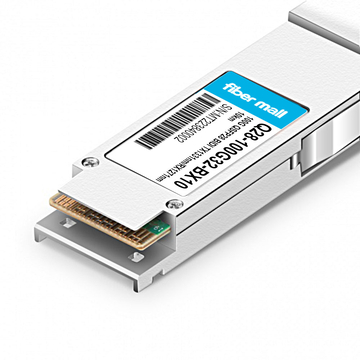

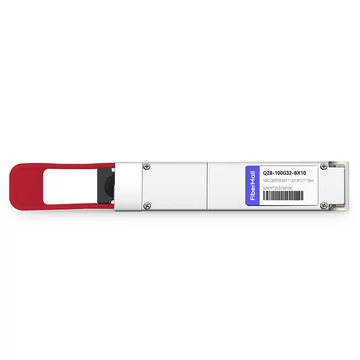

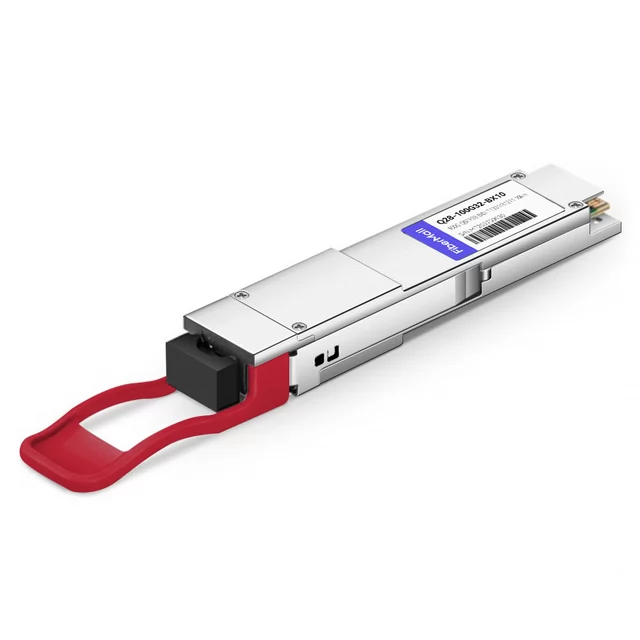

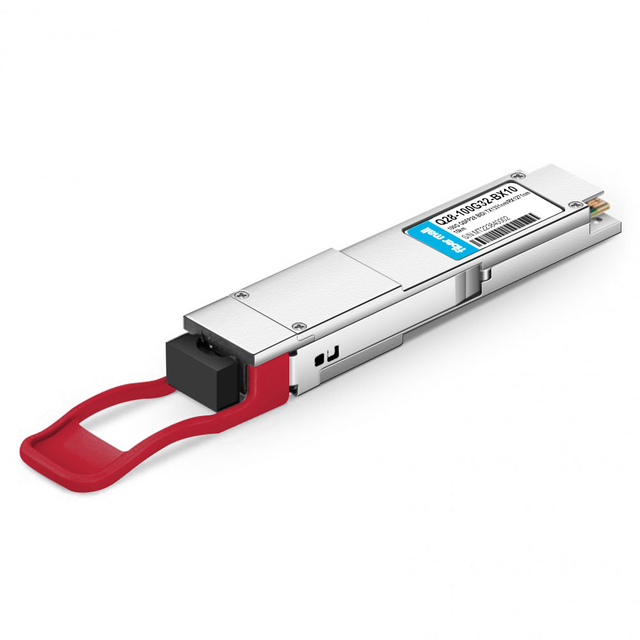

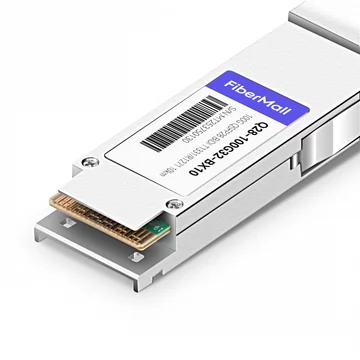

Q28-100G32-BX10 100G QSFP28 BIDI TX1331nm/RX1271nm PAM4 Single Lambda LC SMF 10km DDM Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:18445
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible
Fiber Mall
FM PN:
Q28-100G32-BX10
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100G QSFP28 Bidirectional PAM4 Optical Transceiver Module (TX1331nm/RX1271nm Simplex LC SMF 10km DDM)


100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1331nm/RX1271nm with PAM4 signals for up to 10km transmission over single-mode fiber. The module supports 103.125/106.25/111.8Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver is fully compliant with QSFP28 MSA, 100G OTU4, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.

Product Details

Fiber Mall P/N Q28-100G32-BX10Vendor Name Fiber Mall
Form Factor QSFP28Max Data Rate 111.8Gbps
Wavelength TX1331nm/RX1271nmMax Distance 10km
Connector Simplex LCTransmitter Type EML
Cable Type SMFReceiver Type PIN
DDM Support YesModulation Format PAM4
TX Power -1.4~+4.5dBmReceiver Sensitivity < -6.1dBm
Protocols 802.3cu, SFF-8636 & SFF-8679,
100G OTU4, QSFP28 MSA
Operation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

our advantages

100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

Keep In Stock

Fast Delivery
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

Professional Service

Technical Support
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

Worry-Free Guarantee

Shopping Satisfactorily
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

Fiber Mall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
Coding(EEPROM Programming)
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
Testing system

Partial test demonstartion

100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
Cisco N9k-C92160YC-X-C
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
HP ProCurve 5406zl J8697A
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
ARISTA 7-50QX-32
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
Juniper EX4300
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
Huawei S5700-28X-L1-AC
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
Brocade VDX 6720
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
DELL S4048 ON
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
DATACOM DM4100
100G BIDI QSFP28 TX1331nm/RX1271nm 10km Optics - Fiber Mall
H3C LS-5500-28C-S

Product Features

v Supports 100GBASE-LR1 BIDI

v Lane signaling rate 103.125/106.25/111.8Gb/s with PAM4

v Compatibility with 100G OTU4

v Up to 10km transmission on SMF

v EML Laser and PIN receiver

v 4x25.78Gb/s with NRZ electrical interface (CAUI-4)

v High-speed I/O electrical interface

v I2C interface with integrated Digital Diagnostic monitoring

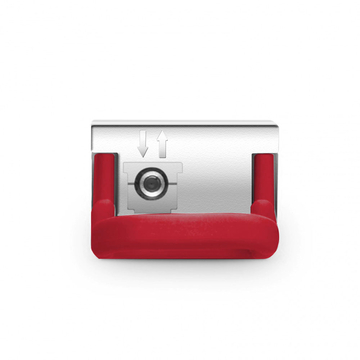

v QSFP28 MSA package with simplex LC connector

v Single +3.3V power supply

v Support HW TX_DIS and RX_LOS for telecom application

v Maximum power consumption 4.5 W

v Operating case temperature: 0 to +70

v Compliant to 802.3cu, SFF-8636&SFF-8679 standard

v Complies with EU Directive 2011/65/EU



Applications

v 100GGBASE-LR1 BIDI
