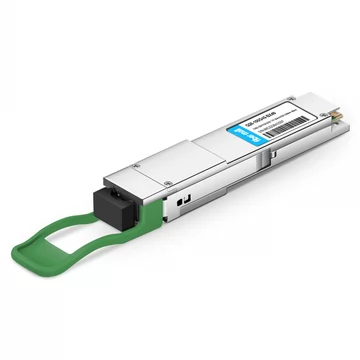

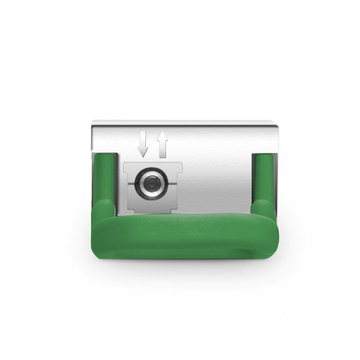

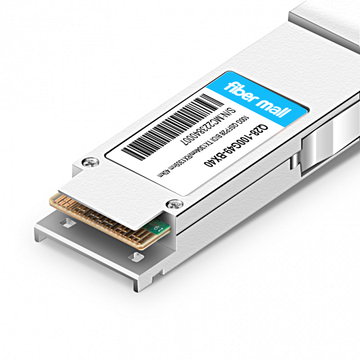

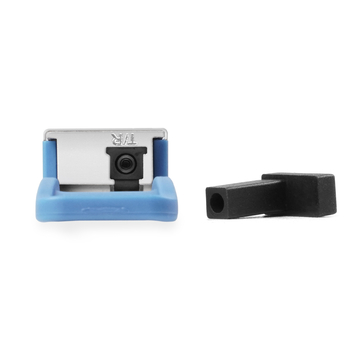

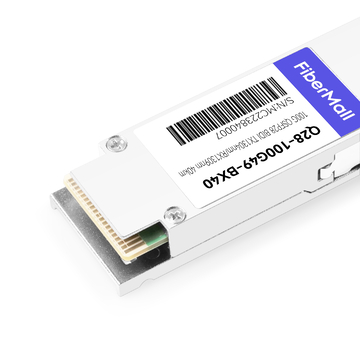

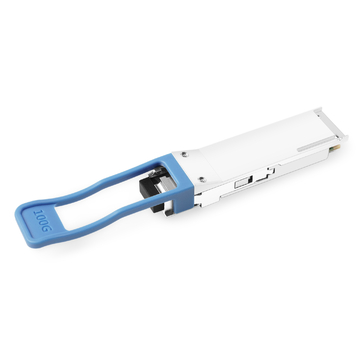

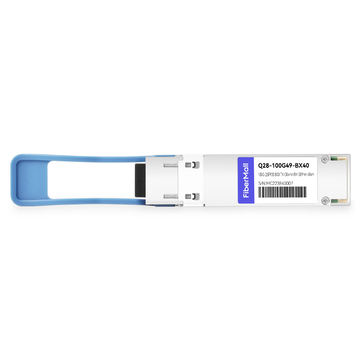

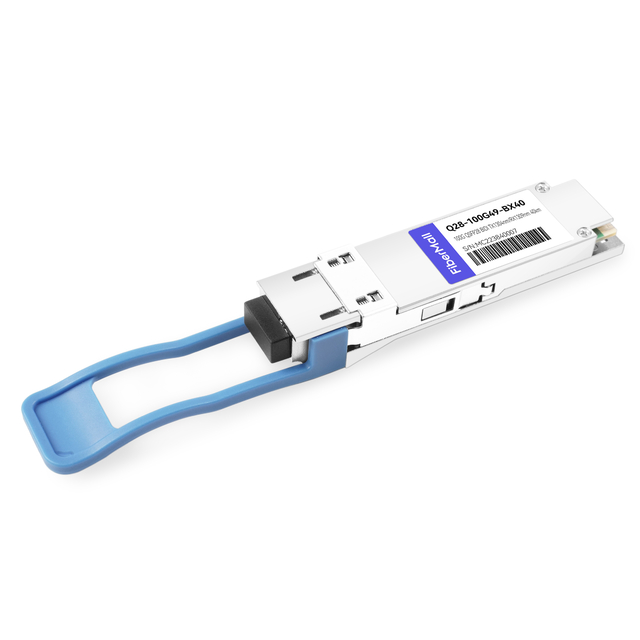

Q28-100G49-BX40 100G QSFP28 BIDI TX1304nm/RX1309nm Single Lambda LC SMF 40km PAM4 DDM Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

FM PN:
Q28-100G49-BX40
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

100G QSFP28 BIDI Single Lambda Optical Transceiver Module (TX1304nm/RX1309nm Simplex LC SMF 40km DDM)

100G BIDI QSFP28 optical transceiver uses the wavelengths of TX1304nm/RX1309nm with PAM4 signals for up to 40km transmission over single-mode fiber. The module supports 103.125/106.25Gb/s with PAM4 lane signaling data rate with a simplex LC connector using the QSFP28 footprint. This bidirectional transceiver is fully compliant with QSFP28 MSA, 802.3cu, SFF-8636 & SFF-8679 specifications in 100GBASE-LR1 BIDI applications. The hot-swapping module features an I2C interface with integrated digital diagnostic monitoring functions.

Product Details

FiberMall P/N Q28-100G49-BX40Vendor Name FiberMall
Form Factor QSFP28Max Data Rate 106.25Gb/s
Wavelength TX1304nm/RX1309nmMax Distance 40km
Connector Simplex LCTransmitter Type EML
Cable Type SMFReceiver Type APD
DDM Support YesModulation Format PAM4
TX Power 1.7~+7.1dBmReceiver Sensitivity < -13.8dBm
Protocols 802.3cu, SFF-8636 & SFF-8679,
100G OTU4, QSFP28 MSA
Operation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

our advantages

100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

Keep In Stock

Fast Delivery
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

Professional Service

Technical Support
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
Coding(EEPROM Programming)
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
Testing system

Partial test demonstartion

100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
Cisco N9k-C92160YC-X-C
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
HP ProCurve 5406zl J8697A
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
ARISTA 7-50QX-32
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
Juniper EX4300
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
HW S5700-28X-L1-AC
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
Brocade VDX 6720
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
DELL S4048 ON
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
DATACOM DM4100
100G BIDI QSFP28 TX1304nm/RX1309nm Single Lambda 40km | FiberMall
H3C LS-5500-28C-S
Product Features
 Supports 100GBASE-ER1-40 BIDI
 Lane signaling rate 106.25Gb/s with PAM4
 Up to 40km transmission on SMF
 4x25.78Gb/s with NRZ electrical interface (CAUI-4)
 High-speed I/O electrical interface
 Single +3.3V power supply
 Maximum power consumption 4.5 W
 Compliant with 802.3cu, SFF-8636&SFF-8679 standard, EU Directive 2015/863/EU
