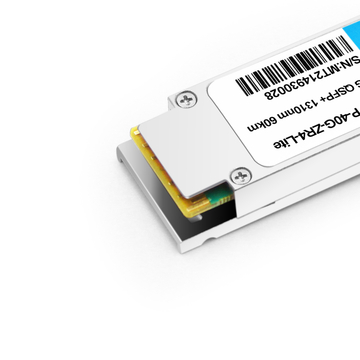

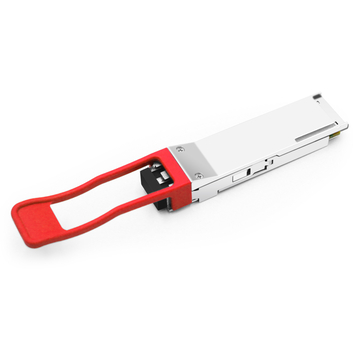

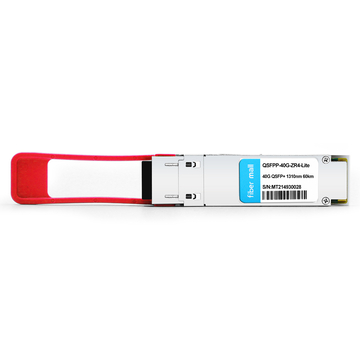

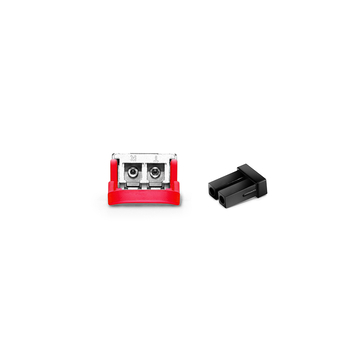

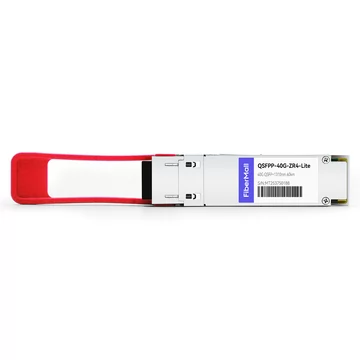

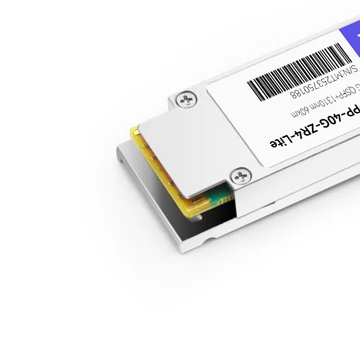

Intel Compatible 40G QSFP+ ZR4 Lite CWDM4 Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 60km LC DDM)
The 40G QSFP+ ZR4 Lite is a 60km optical communication application transceiver module. The design is compliant with 40GBASE-ER4 of the IEEEP802.3ba standard. The module converts 4 input channels of 10Gb/s electrical datato4CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. On the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channel signals and converts them to 4-channel output electrical data.
Product Details
Fiber Mall P/N | QSFPP-40G-ZR4-Lite | Vendor Name | FiberMall |
Form Factor | QSFP+ | Max Data Rate | 40Gbps |
Wavelength | 1271nm, 1291nm 1311nm, 1331nm | Max Distance | 60km |
Connector | LC Duplex | Transmitter Type | CWDM DFB |
Cable Type | SMF | Receiver Type | APD |
TX Power | +3.0~+7.0dBm | Receiver Sensitivity | < -23.0dBm |
Protocols | 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite, MSA, QDR/DDR Infiniband | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
Keep In Stock
- Fast Delivery
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
Professional Service
- Technical Support
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
- Coding(EEPROM Programming)
![Intel QSFP+ 40G ZR4 Lite 60km Optical Transceiver | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
