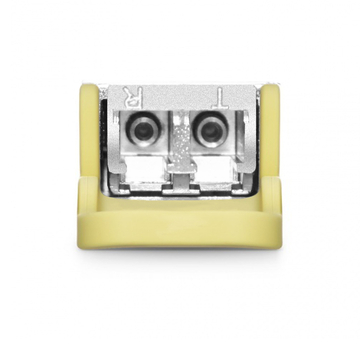

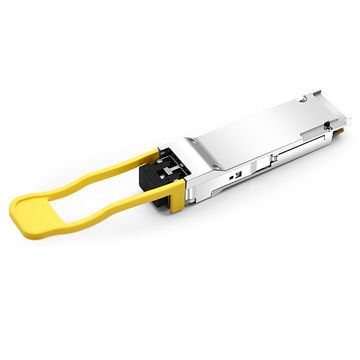

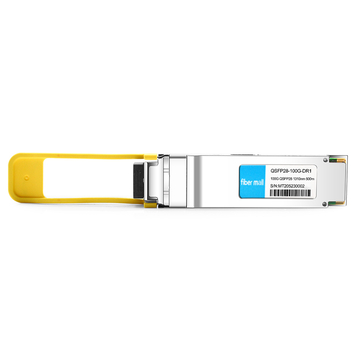

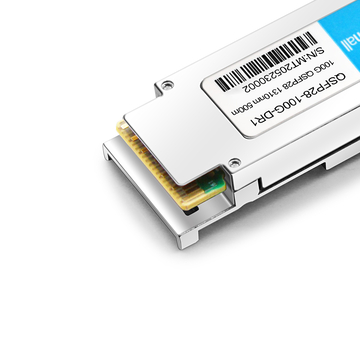

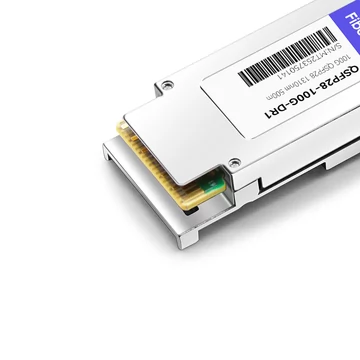

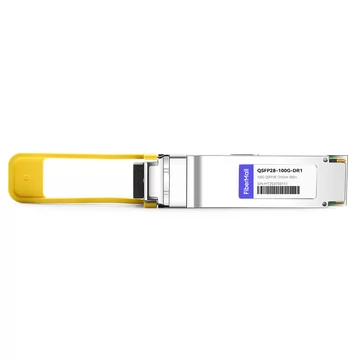

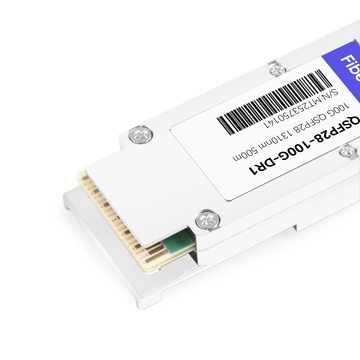

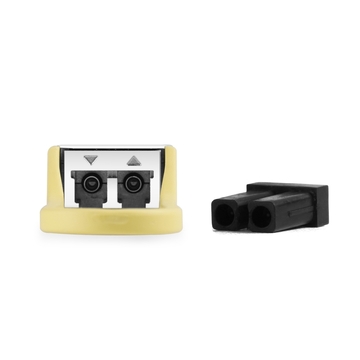

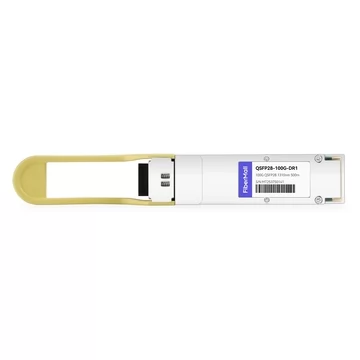

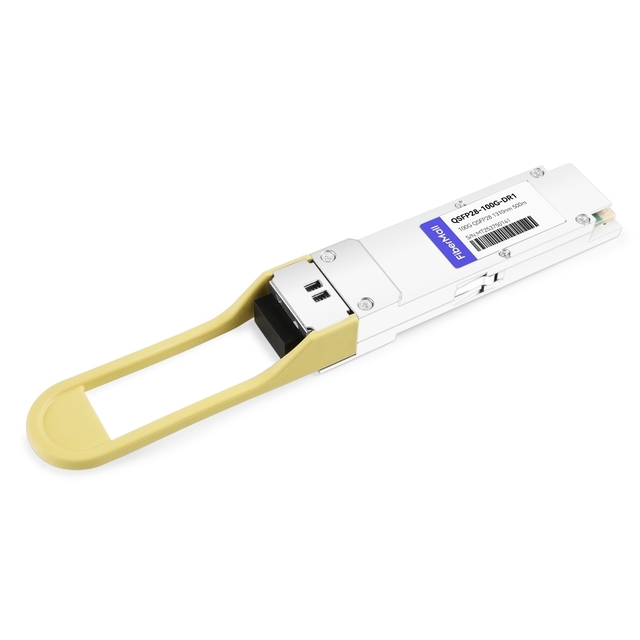

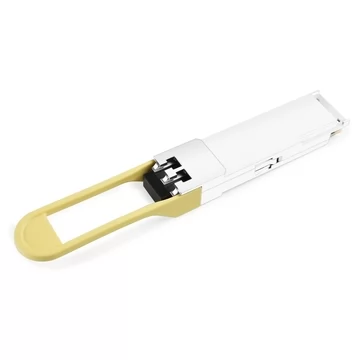

Juniper QSFP-100G-DR Compatible 100G QSFP28 Single Lambda DR 1310nm 500m LC SMF with FEC DDM Optical Transceiver

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:20200
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Transmission Mode
Single Lambda
FM PN:
QSFP28-100G-DR1
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to Canada Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Juniper QSFP-100G-DR Compatible 100G QSFP28 PAM4 Single Lambda DR Optical Transceiver (1310nm SMF 500m LC with FEC DDM)

The 100Gbase DR incorporates one channel optical signal, on 1310nm center wavelength,  operating at a 50Gbaud data rate.  A DSP-based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signals.  The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and the optical interface is compliant with IEEE 802.3cd and 100G Lambda MSA with a Duplex LC connector. The module has a maximum power consumption of 3.5W.

Product Details

Juniper Compatible QSFP-100G-DRVendor Name FiberMall
Form Factor QSFP28Max Data Rate 100Gbps Single Lambda
Wavelength 1310nmMax Distance 500m
Connector Duplex LCTransmitter Type EML
Cable Type SMFReceiver Type PIN
TX Power -2.4~+4.0dBmReceiver Sensitivity < -4.4dBm
DDM Support YESFEC Support YES
Protocols IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA CompliantOperation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

our advantages

Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

Keep In Stock

Fast Delivery
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

Professional Service

Technical Support
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
Coding(EEPROM Programming)
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
Testing system

Partial test demonstartion

Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
Cisco N9k-C92160YC-X-C
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
HP ProCurve 5406zl J8697A
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
ARISTA 7-50QX-32
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
Juniper EX4300
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
HW S5700-28X-L1-AC
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
Brocade VDX 6720
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
DELL S4048 ON
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
DATACOM DM4100
Juniper QSFP-100G-DR Compatible Single Lambda 100G DR1 | FiberMall
H3C LS-5500-28C-S
Juniper Compatible
QSFP-100G-LR
QSFP-100G-FR
QSFP-100G-DR
-
Vendor Name
FiberMall
FiberMall
FiberMall
FiberMall
Form Factor
QSFP28
QSFP28
QSFP28
QSFP28
Max Data Rate
100Gbps Single Lambda
100Gbps Single Lambda
100Gbps Single Lambda
103.1Gbps
Wavelength
1310nm
1310nm
1310nm
1295.56nm, 1300.05nm
1304.58nm, 1309.14nm
Max Distance
10km
2km
500m
30km without FEC
40km with FEC
Connector
Duplex LC
Duplex LC
Duplex LC
Duplex LC
Transmitter Type
EML
EML
EML
LAN WDM EML
Cable Type
SMF
SMF
SMF
SMF
Receiver Type
PIN
PIN
PIN
APD
TX Power
-1.4~+4.5dBm
-2.4~+4.0dBm
-2.4~+4.0dBm
-2.9~+4.5dBm
Receiver Sensitivity
< -4.5dBm
< -4.5dBm
< -4.4dBm
<-16.9dBm without FEC
<-20.9dBm with FEC
DDM Support
YES
YES
YES
-
FEC Support
YES
YES
YES
-
Protocols
100G Lambda MSA 100G-LR, 100G Ethernet
100G Lambda MSA 100G-FR, 100G Ethernet
IEEE802.3cd 100GBASE-DR, 100G Ethernet, MSA Compliant
100G Ethernet, MSA Compliant
Operation Temperature
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)

Product Features

v Single +3.3V power supply

v QSFP28 MSA package with LC connector

v Supports 53.125Gbaud

v IEEE802.3cd 100GBASE-DR Specification compliant

v Up to 500m transmission on single mode fiber (SMF) with FEC

v 4x25G electrical interface (OIF CEI-28G- VSR)

v Maximum power consumption 4W

v Supports Data Center Interconnect, 100G Ethernet, and Enterprise networking.
