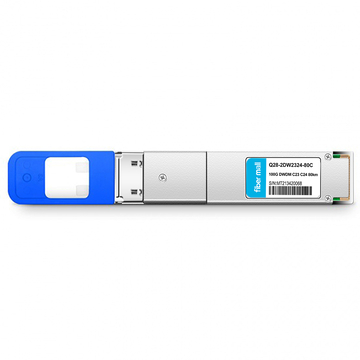

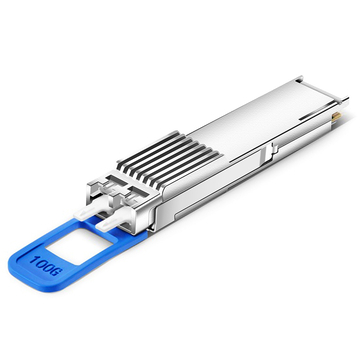

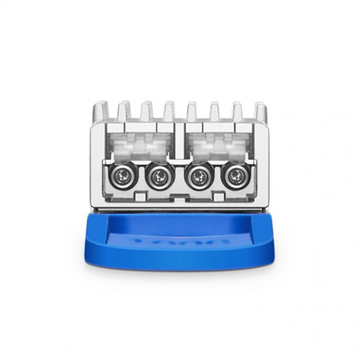

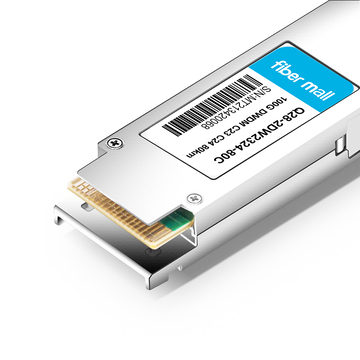

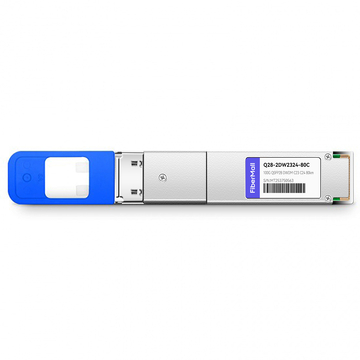

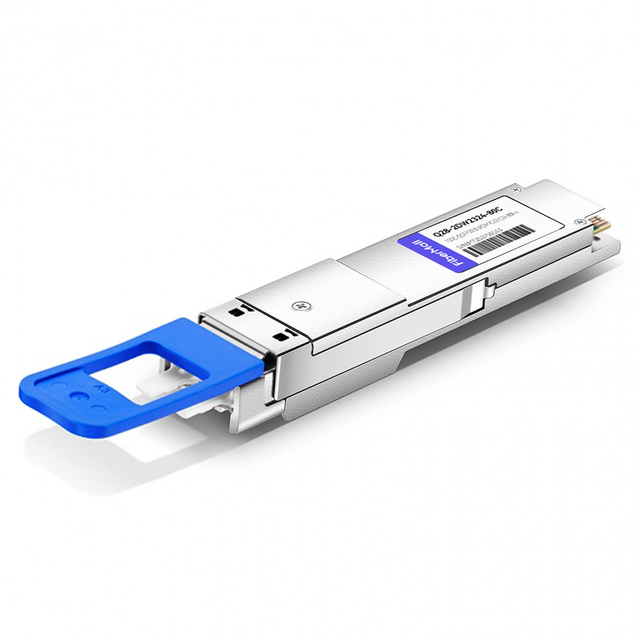

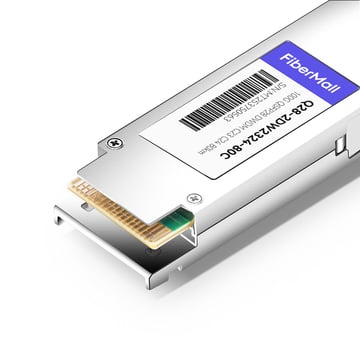

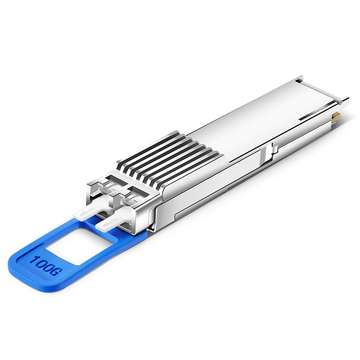

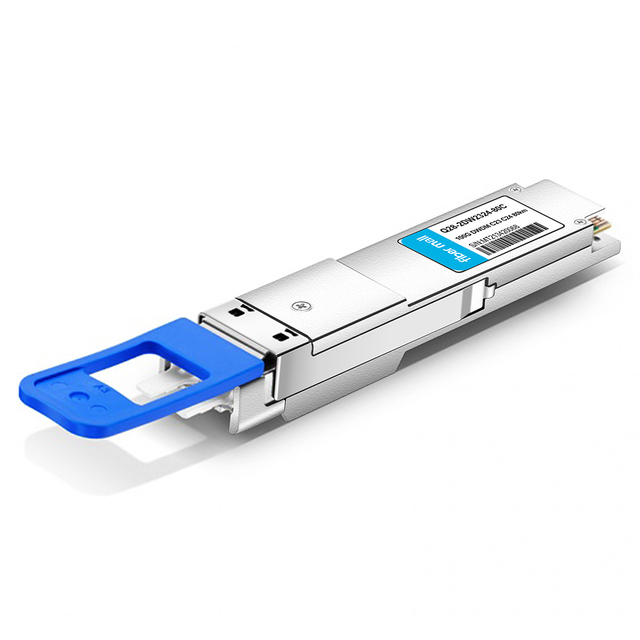

Huawei Compatible 100G DWDM QSFP28 C23 C24 100GHz CS DDM Optical Transceiver

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:60236
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
FM PN:
Q28-2DW2324-80C
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Available for back order. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Huawei Compatible 100G DWDM QSFP28 PAM4 2x50G C23 C24 Optical Transceiver (1558.98nm 1558.17nm SMF 80km CS SFEC DDM)

Product Details

FiberMall P/N Q28-2DW2324-80CVendor Name FiberMall
Form Factor QSFP28Max Data Rate 100Gbps (2x50G)
Wavelength 1558.98nm 1558.17nmMax Distance 80km (With EDFA and DCM)
Connector CS DuplexTransmitter Type EML
Cable Type SMFReceiver Type PIN
TX Power -1.0~+4.0dBmReceiver Sensitivity < -12.5dBm
DDM Support YESFEC Support YES
Protocols QSFP28 MSA, SFF-8665,
SFF-8636
Operation Temperature 0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

our advantages

Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

Keep In Stock

Fast Delivery
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

Professional Service

Technical Support
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
Coding(EEPROM Programming)
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
Testing system

Partial test demonstartion

Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
Cisco N9k-C92160YC-X-C
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
HP ProCurve 5406zl J8697A
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
ARISTA 7-50QX-32
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
Juniper EX4300
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
HW S5700-28X-L1-AC
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
Brocade VDX 6720
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
DELL S4048 ON
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
DATACOM DM4100
Huawei 100G DWDM QSFP28 PAM4 C23 C24 CS 80km | FiberMall
H3C LS-5500-28C-S

Product Features

v Hot-pluggable QSFP28 MSA form factor

v Up to 80km reach for G.652 SMF with transport white box

v Single +3.3V power supply

v Temperature Range 0 to 70°C

v Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA

v Receiver: 2*27.5Gbaud/s Pin-PD ROSA

v 4*25G CAUI4 electrical interface

v Integrated SFEC with high coding gain

v PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible

v Dual CS adaptor

v Compatible with RoHS6



Applications

v High bandwidth connectivity for Data Center Interconnection

v 100G Ethernet Metro-Access over DWDM

v P to P Access Network
