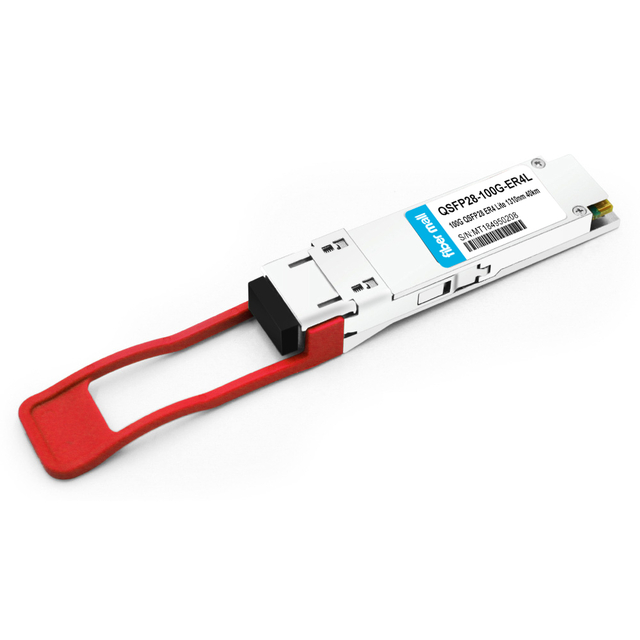

Cisco QSFP-100G-ER4L-S Compatible 100G QSFP28 ER4 Lite Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm SMF 40km with FEC,30km without FEC LC DDM)
This product is a 100Gb/s transceiver module designed for optical communication applications compliant with Ethernet 100GBASE-ER4 Lite standard. The module converts input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. The high-performance cooled LAN WDM EA-DFB transmitters and high sensitivity APD receivers provide superior performance for 100Gigabit Ethernet applications up to 30km links without FEC and 40km links with FEC.
Product Details
| Cisco Compatible | QSFP-100G-ER4L-S | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.1Gbps |
| Wavelength | 1295.56nm, 1300.05nm
1304.58nm, 1309.14nm | Max Distance | 30km without FEC
40km with FEC |
| Connector | Duplex LC | Transmitter Type | LAN WDM EML |
| Cable Type | SMF | Receiver Type | APD |
| TX Power | -2.9~+4.5dBm | Receiver Sensitivity | <-16.9dBm without FEC
<-20.9dBm with FEC |
| Protocols | 100G Ethernet, MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Quality
Assurance
Excellent quality is the foundation of FiberMall's survival and development. Our operation team are experts with many years' experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.
our advantages
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
Keep In Stock
- Fast Delivery
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
Professional Service
- Technical Support
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
Worry-Free Guarantee
- Shopping Satisfactorily
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products are industrial products that require high stability and
reliability.FIBERMALL adopts leading product design, first-class raw materials, and production
technology to ensure the first-class quality of our products so that your project can be used, installed
stably, and reliably
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
Temperature Impact
- High and low-temperature cycle, aging test to ensure good temperature characteristics
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
Mechanical Impact
- Mechanical vibration testing to ensure the stability of products
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
EMI Testing
- Excellent design and rigorous testing ensure good EMI performance
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
MTBF Testing
- MTBF(Mean Time Between Failures)testing ensures high stability
100% 3rd Party Compatible
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before
shipment, We will code the optical modules or DAC/AOC cables, and then test them on the corresponding
switches to ensure that our products are 100% compatible with your system.
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
- Coding(EEPROM Programming)
![Cisco QSFP-100G-ER4L-S Compatible 100G ER4 Lite QSFP | FiberMall]()
- Testing system
Partial test demonstartion
-
ARISTA 7060SX2-48YC6
-
H3C S6850-56HF
-
Cisco N9K-C92160YC-X
-
HP JG510A
-
Juniper QFX5110-48S-AFO
-
Mellanox SN4700
-
Cisco-N9K-C93600CD-GX
-
NVIDIA QM9790
-
Ruijie RG-S6990-128QC2XS
