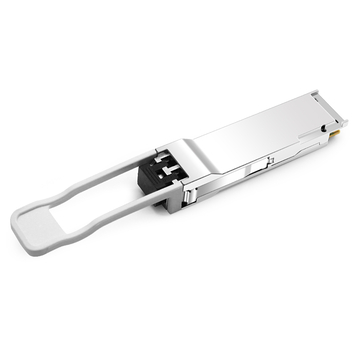

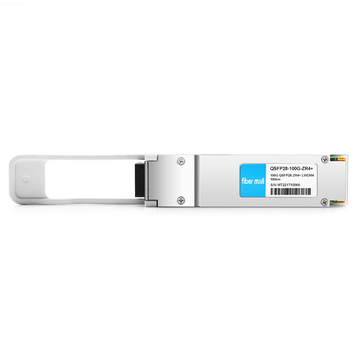

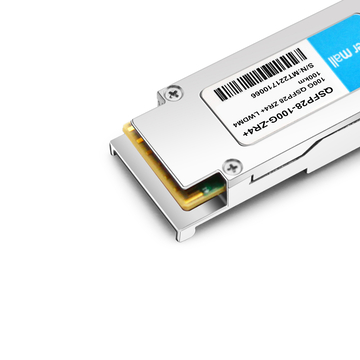

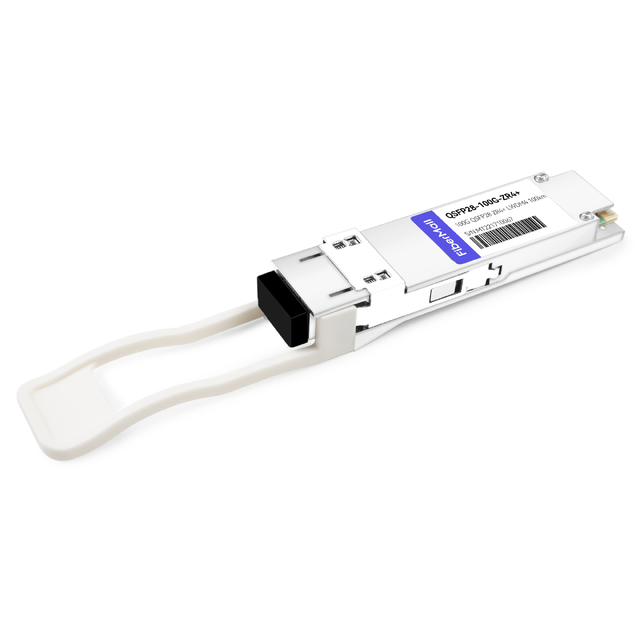

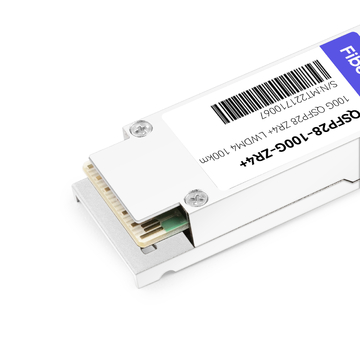

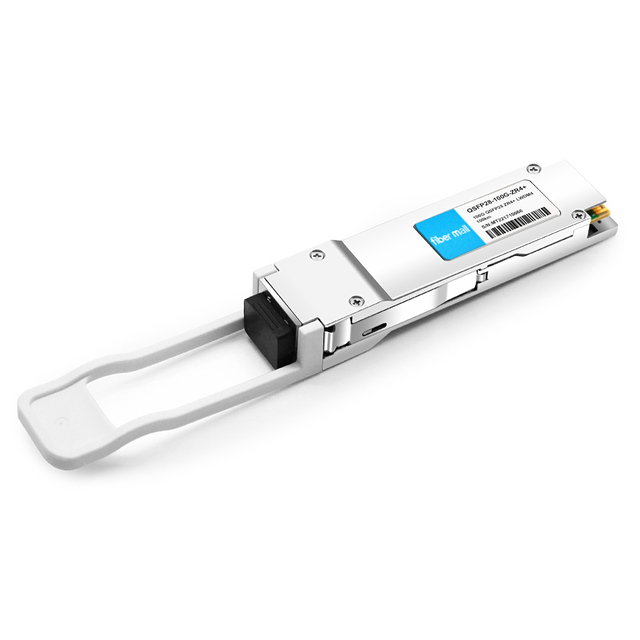

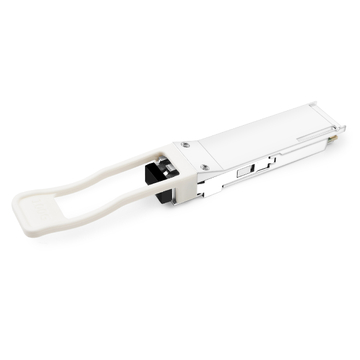

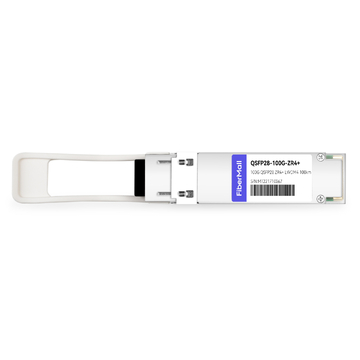

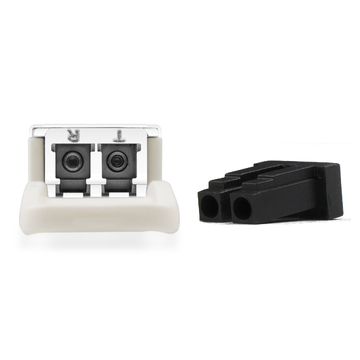

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km LC SMF DDM Optical Transceiver Module

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:20154
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Transmission Mode
Regular
FM PN:
QSFP28-100G-ZR4+
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 Optical Transceiver Module (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm LC SMF 100km DDM)

100G ZR4+ optical module provides up to 103.12Gbps data rate using QSFP28 footprint at the wavelengths of LWDM, which is designed with digital diagnostic monitoring. Compared to the 100G QSFP28 ZR4 module, this optics features up to 100km transmission distance over single-mode fiber with LC ports. It is compatible with the IEEE 802.3bm, ITU-T G.959, SFF-8636, and SFF-8679 specifications for 100GBASE-ZR4+ applications. The hot-pluggable transceiver supports the Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS.

Product Details

FiberMall P/N QSFP28-100G-ZR4+Vendor Name FiberMall
Form Factor QSFP28Max Data Rate 103.12Gbps
Wavelength 1295.56nm, 1300.05nm,
1304.58nm, 1309.14nm
Max Distance 100km
Connector Duplex LCTransmitter Type LAN WDM Laser
Cable Type SMFReceiver Type PIN with SOA
TX Power +4.0~+8.0dBmReceiver Sensitivity < -30dBm
Protocols QSFP28 MSA, IEEE 802.3bm, ITU-T G.959, SFF-8636 and SFF-8679Operation Temperature 0 to 70°C (32 to 158°F)


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

our advantages

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

Keep In Stock

Fast Delivery
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

Professional Service

Technical Support
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

Premium Quality

High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

Temperature Impact

High and low temperature cycle,aging test to ensure good temperature characteristics
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

Mechanical Impact

Mechanicalvibration testing to ensure the stability of products
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

EMI Testing

Excellent designand rigorous testing ensuregood EMI performance
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall

MTBF Testing

MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
Coding(EEPROM Programming)
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
Testing system

Partial test demonstartion

Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
Cisco N9k-C92160YC-X-C
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
HP ProCurve 5406zl J8697A
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
ARISTA 7-50QX-32
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
Juniper EX4300
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
HW S5700-28X-L1-AC
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
Brocade VDX 6720
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
DELL S4048 ON
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
DATACOM DM4100
Cisco Compatible 100G QSFP28 ZR4+ LWDM4 100km Module | FiberMall
H3C LS-5500-28C-S
FiberMall P/N
QSFP28-100G-ZR4+
-
-
Vendor Name
FiberMall
FiberMall
FiberMall
Form Factor
QSFP28
QSFP28
QSFP28
Max Data Rate
103.12Gbps
103.125Gbps
103.1Gbps
Wavelength
1295.56nm, 1300.05nm,
1304.58nm, 1309.14nm
1295.56nm, 1300.05nm
1304.58nm, 1309.14nm
1295.56nm, 1300.05nm
1304.58nm, 1309.14nm
Max Distance
100km
80km
30km without FEC
40km with FEC
Connector
Duplex LC
Duplex LC
Duplex LC
Transmitter Type
LAN WDM Laser
EML
LAN WDM EML
Cable Type
SMF
SMF
SMF
Receiver Type
PIN with SOA
SOA + PIN
APD
TX Power
+4.0~+8.0dBm
+2.0~+6.5dBm
-2.9~+4.5dBm
Receiver Sensitivity
< -30dBm
< -28dBm
<-16.9dBm without FEC
<-20.9dBm with FEC
Protocols
QSFP28 MSA, IEEE 802.3bm, ITU-T G.959, SFF-8636 and SFF-8679
100G Ethernet, QSFP28 MSA Compliant
100G Ethernet, MSA Compliant
Operation Temperature
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)
0 to 70°C (32 to 158°F)

Product Features

v Supports 100GBASE 100GE

v Lane bit rate 25.78 Gb/s 100GE

v Up to 100km transmission on SMF;

v LAN WDM laser and PIN receiver with SOA;

v Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;

v High speed I/O electrical interface (CAUI-4);

v Single +3.3V power supply;

v Typical power consumption 6.5 W;

v Compliant with SFF-8636 and SFF-8679, IEEE 802.3bm and ITU-T G.959 and EU Directive 2015/863/EU
